LoneStarCon 3 lighting diagrams

(a set of living documents; feedback to me please)

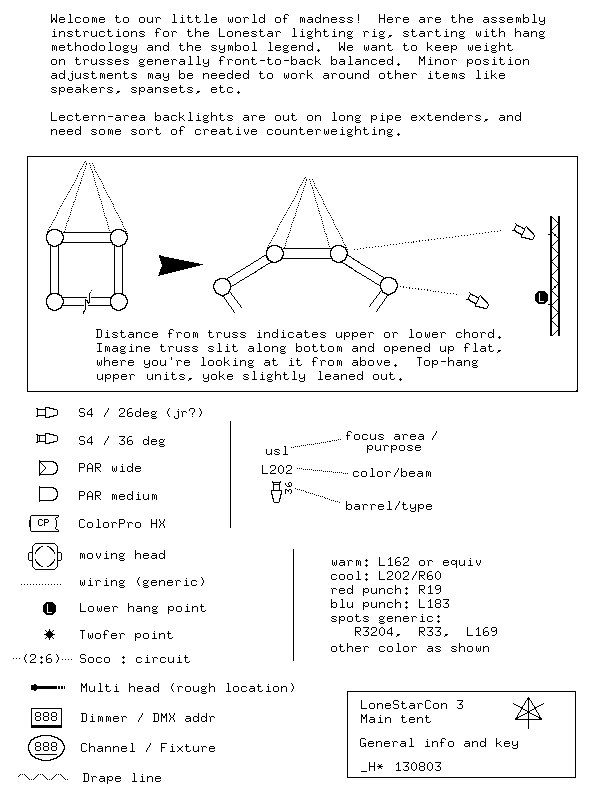

ipage.gif : Intro page with hang instructions and symbol key

Large-scale stuff

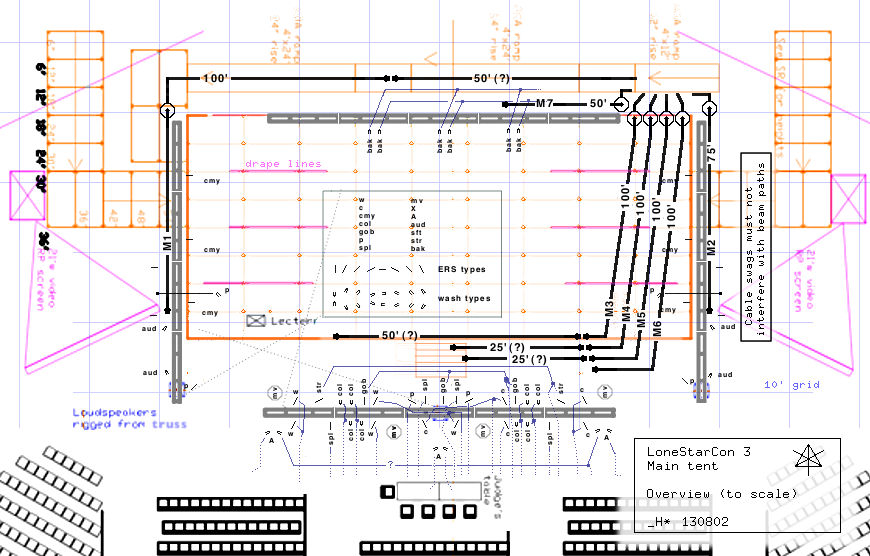

mainov.jpg : Stage overview [from z!'s diagrams], with socapex paths

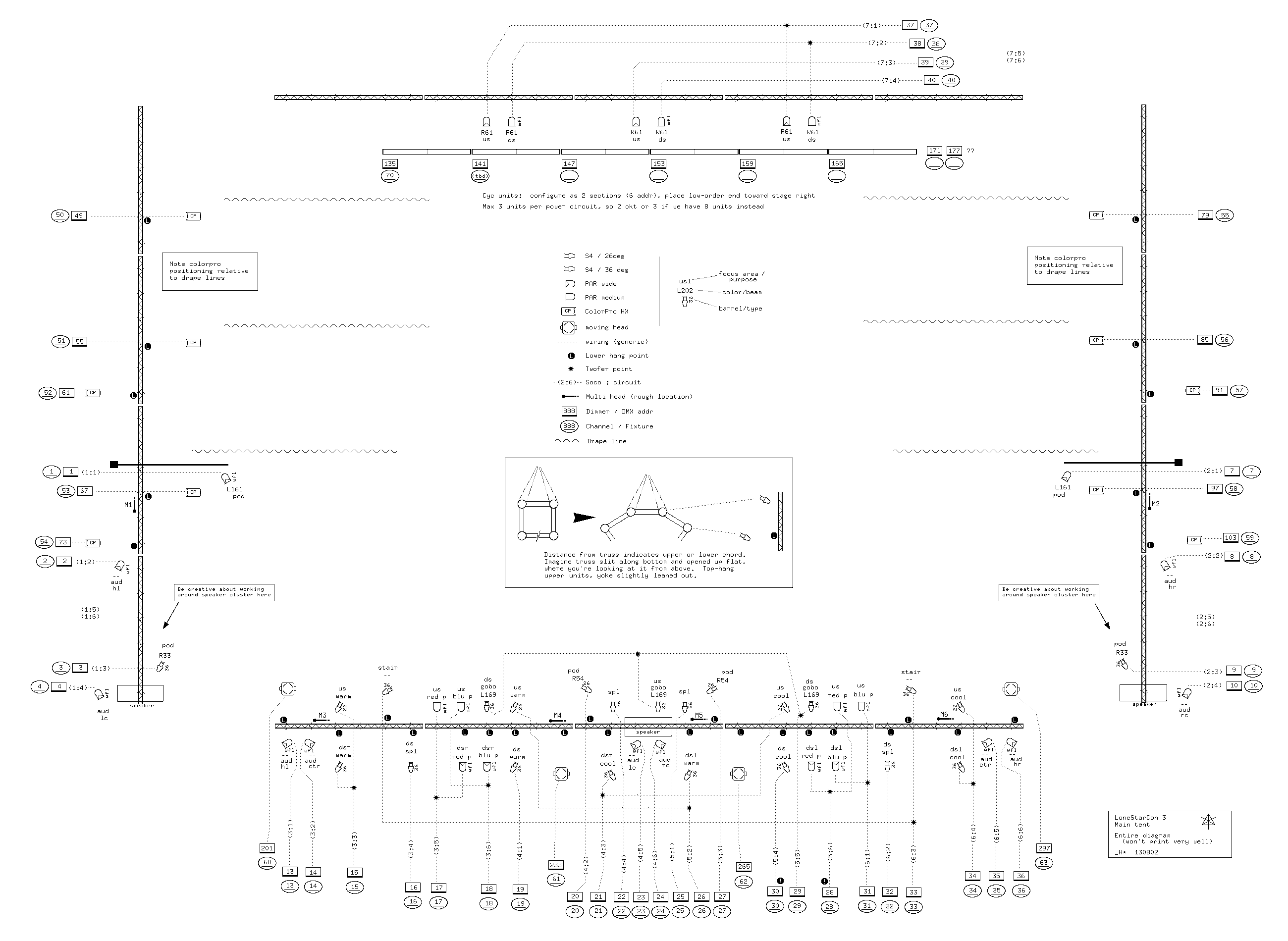

whole.gif : Entire plot as one picture
    [you likely don't want to work from this, see per-section breakouts below]

Sections for printing
fl.gif : Front truss, left side

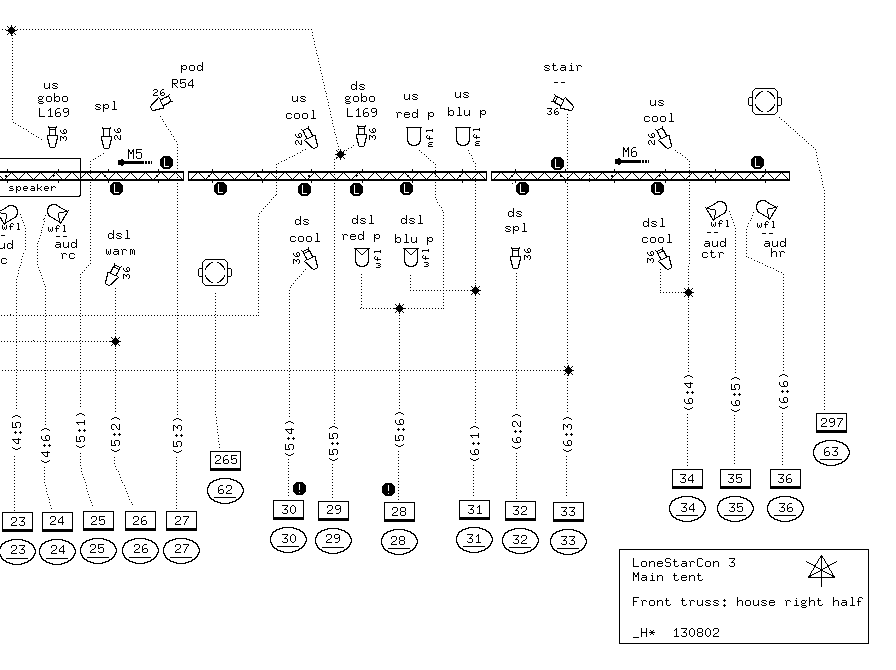

fr.gif : Front truss, right side

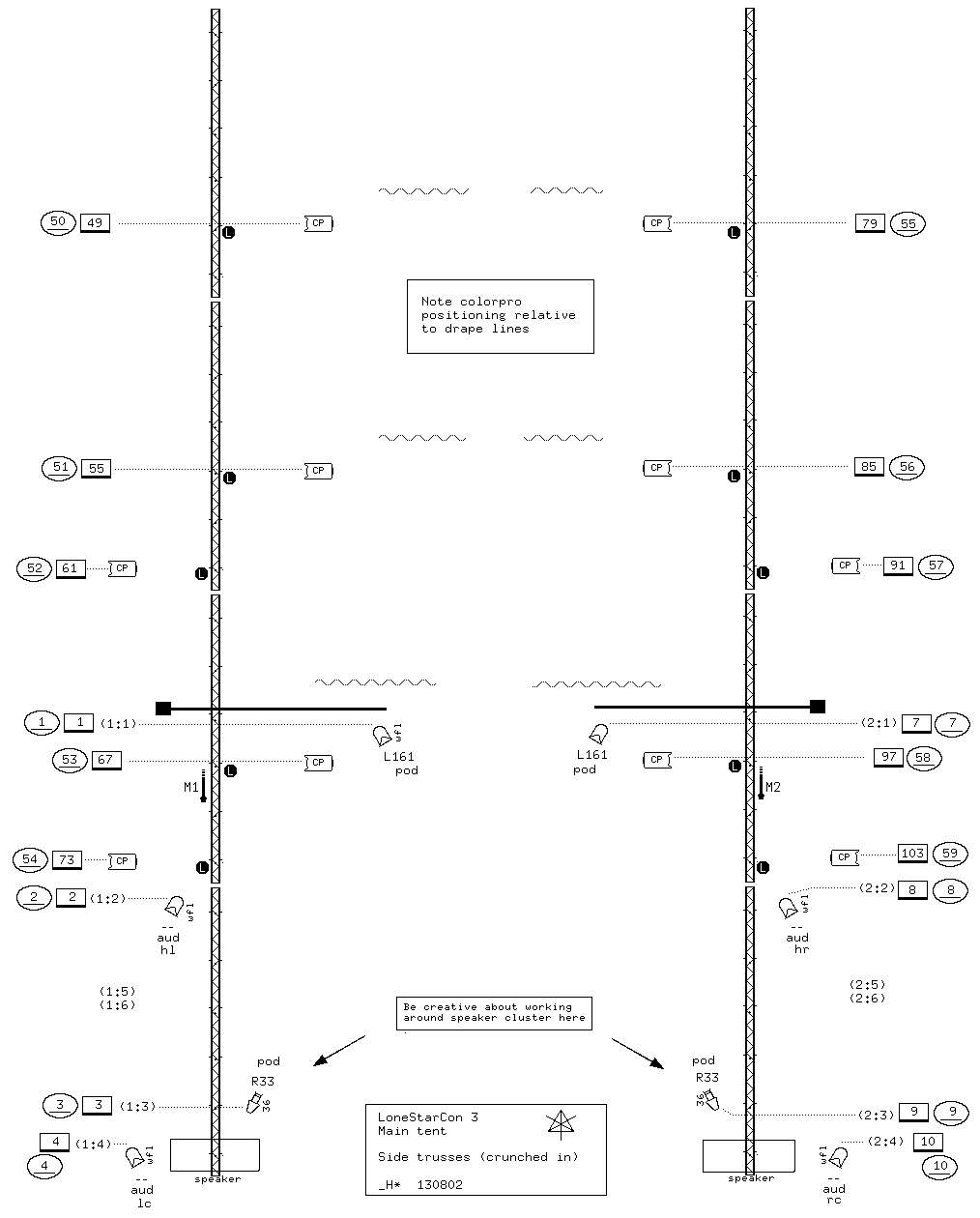

sides.gif : Side trusses

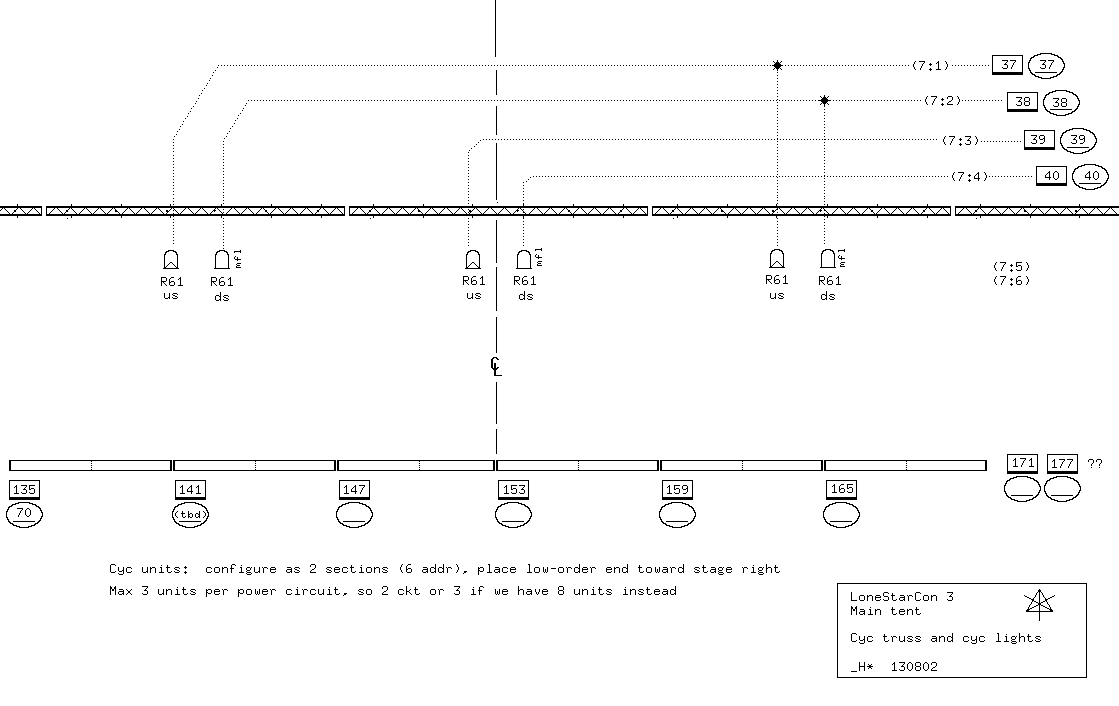

cyc.gif : Cyc and upstage

m.png : Components magic sheet to fill in on-site

_H*   130803
