Spinning blinkies: Chapter 3

Toward more sophisticated spinning

  If lashing the cheap poi-balls onto the ends of my PVC pipe was Chapter 1 in this evolving saga, then Chapter 2 had to be those crazy hacked-together assemblies with the dowels run into the ends of clear polycarbonate tubing -- which I'd specifically acquired with the idea of more advanced flow-prop building in mind, of course.  Despite holding up surprisingly well under the abuse of providing entertainment at the weekly beachfront drum-circles down south, those modules made from components out of cheap toys were already starting to fall apart and it was time to think about something not only a little more robust, but also more versatile in terms of light patterns.  There are plenty of commercial options available in this regard but I didn't want to just spring for something off-the-shelf, it wouldn't have the same design uniqueness that I might be able to add.

The "Chapter 2" kludgery had given me some ideas of what would work, and the folks at FlowToys had recently introduced their new LED Capsule product which was available for sale a la carte.  A quick look at the patterns chart for it told me this was the sort of thing I wanted as a starting point.  It also runs from a USB-rechargeable lithium cell, so I wouldn't be burning through six-packs of button cells just to, so to speak, keep the lights on.  A quick emailed query clarified that although their Capsules as built wouldn't fit down my thicker-walled tubing, the working *innards* of same would, and quite neatly so.  That would be fine since immediate modifications would be the essential idea!  After a bit of an uphill fight with their website I managed to place an order for a couple of Capsules and a pair of their end-caps, which are much more elegant and protective than old poi-ball shells weirdly squashed by sending screws through them.

The intended mods would just be adding more LEDs and adapting the mechanical fit, nothing much more than that.  Plenty of people are slaving away night and day over the question of *how* to make LEDs blink in ever more sophisticated ways, so none of this would involve sitting down at an Arduino dev-kit or the like and trying to make it run patterns.  I was happy to build upon the work of others who were already far better at that than I would likely ever be.  My challenge would be more toward durability, e.g. repackaging something with small electronics and then repeatedly whacking it on the ground and having it *not* break.  And ideally, to do so using whatever parts I could scrounge up out of my existing junkboxes and remaining stock of cheap blinkie-toys.

I opened up a capsule and just stared at the extracted innards for a long time, sometimes eyeballing various dimensions against a section of my tubing, while trying to figure out what I really wanted to do.  I cycled the batteries all the way down and back to full charge, generally good to do at least once on fresh cells even if lithium chemistry doesn't have the time-honored memory problem.  I played around with the modes and sub-modes listed on the instruction sheet, all very well and good, but it took a while to get a clear vision of where to head on the modification project as a whole.  In the meantime, I also started a little analysis of what I had here -- determining how the unit worked, where to attach external power from a variable supply, and scoping various points to learn more about its internal operation.  It seemed to be a rather elegant design, more details of which are described down at the end of this page.

[Images link to larger versions.]

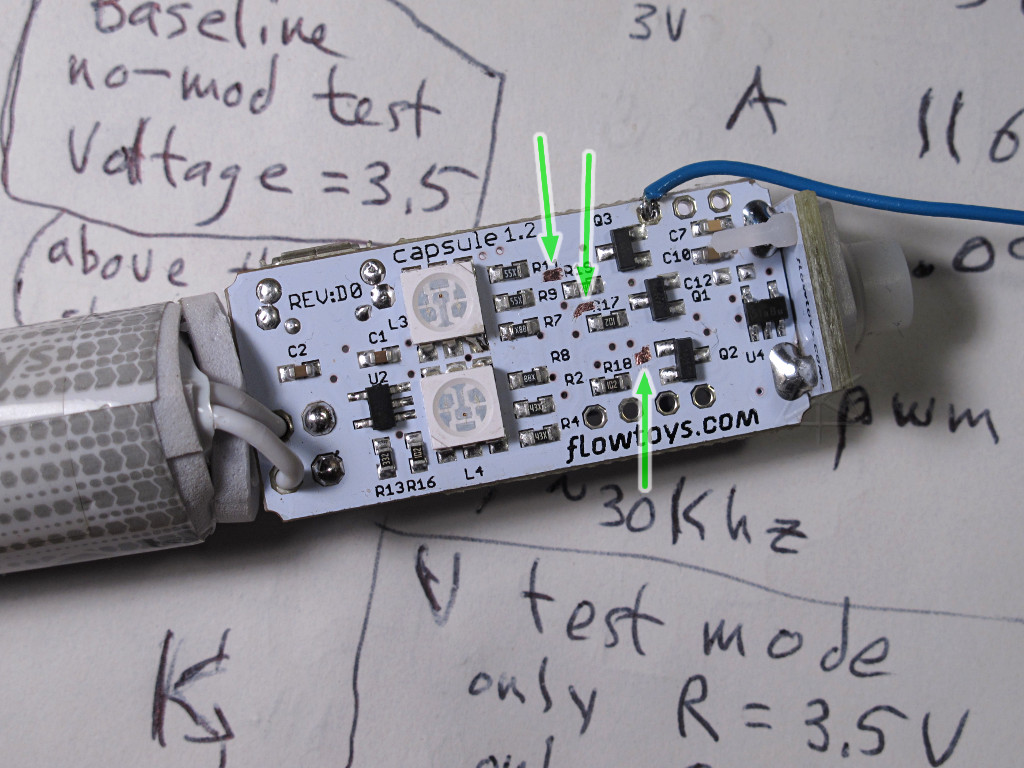

LED output tap points This is the output side of the Capsule board, if you will, where the LED driver transistors are.  Common positive from the battery runs to all the inward anode leads on the LEDs, in the same general configuration as the boards on the cheapo toys I'd already taken apart.  This is typical because it's easier to switch the negative from a non-inverted microcontroller ouput.  It took a while to determine the circuit paths of what I needed to access, as the solder masking is opaque white rather than clear, but holding the board just at the right angle under light showed substantial lands coming from the collectors of the three output transistors which would be where I'd need to attach my feeds.
In this design, each individual LED element gets its own dropping resistor, which when driven by a minimum 3.5V power supply needs to be less than 100 ohms.  They're not even running the full current capability of these 5050-style LED chips, but only at 10 or 15 milliamps they are nontheless, as Adafruit puts it, eyeball-searingly bright.  They're the same ones used in a lot of the flexible strip lights on the market now.  Kind of amazing how such a tiny die with a tiny bonding wire can produce *that* much light, only getting mildly warm in the process.  The LEDs I would add wouldn't be nearly as punchy, but would serve to add more light-emitting area farther along the staff.  I figured I could get away with ganging pairs of each color with a single dropping resistor per pair, as the forward voltage per color seemed well enough matched.

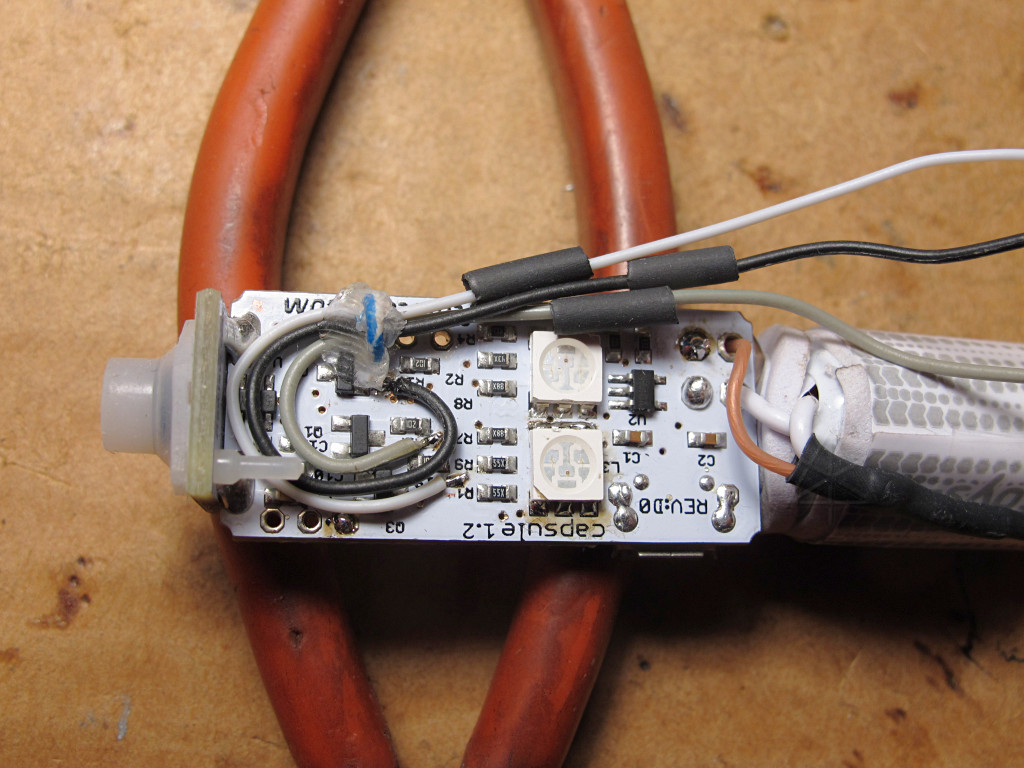

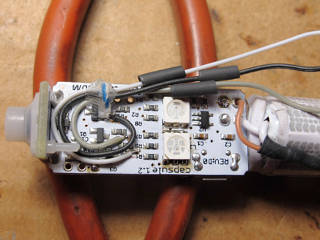

Tap wires soldered in Getting my wires onto those tap points was a little dicey, with just a hand soldering iron under the head-worn "old man" magnifier.  Hunched over the bench with the board clamped in a mini-vise, my tiniest tip, and my wrist braced across a rolled-up shirt, it still felt like I was shaking all over the place.  At one point I briefly shorted from the middle tap point to the end of the base-drive resistor next to it, causing the green LEDs to suddenly pop on, and I thought I'd just ruined the whole thing.  I managed to reheat it and shift the wire over just enough, and thankfully the LED went out and the circuit was still fine.  Next was to very carefully bend the wires around and through the little retaining loop I'd mounted into a spare through-hole, without stressing the tap points at all, and hot-glue it down against further flexure as soon as I could.  Whew.

  The tap wires look pretty massive on that scale of things; I could have conceivably used something thinner like bits of Kynar, but I wanted these to be *stranded* for the extra flexibility and they were pretty much the smallest workable gauge I had on hand.  Their next stop would be the added resistors over next to the battery, so they'd pass through where the whole assembly can bend a little between the board and the battery.  Even with the whole thing eventually constrained inside tubing, a little motion would still be quite possible during spinning [and inevitably dropping] and I wanted everything that went through that area to stay flexible.

On one of the two Capsule units I had done the nominally safe thing and disconnected one side of the battery, so I wouldn't have to work on the circuit hot.  I could also then experiment with different supply voltages from an external variable source.  But the insulation on that miniscule wire got a little mucked up in the process of desoldering, which I had to patch up while putting things back together, and I decided to *not* do that on the other unit and just keep it live during the whole modification process.  I had also slid one of the chip LEDs off the board to play with it in isolation and view the routing underneath, and had to tack that back on.  Despite sullying their gleaming white solder-resist here and there with ugly patches of flux, amazingly enough I did not end up with a mess of charred junk in the end.

Next, it was time to dig up and prepare the other parts.  I'm not a surface-mount house by any means, although as of this writing there are a couple of things on the shopping list toward better capability in that area.  For this I'd just be using generic thru-hole parts and old-skool hand wiring.  There's certain benefit in sticking with what we know and are handy with, even if it makes the results a little chunkier.

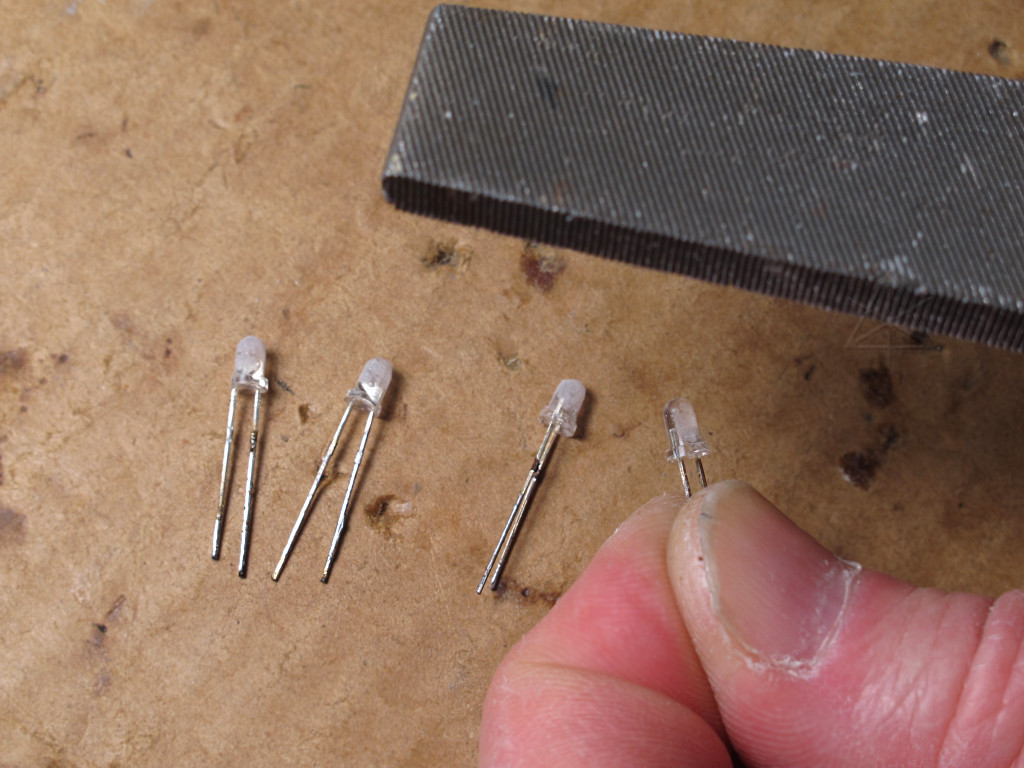

Diffusing clear LED cases The LEDs I had available were in "water clear" non-diffusing packages and I wanted them to be able to spread their throw of light a little more.  So a little bit of roughing up with a file turned them into diffusing cases.

If this already seems too anal in terms of picky design subtlety, just wait, it gets a lot worse.

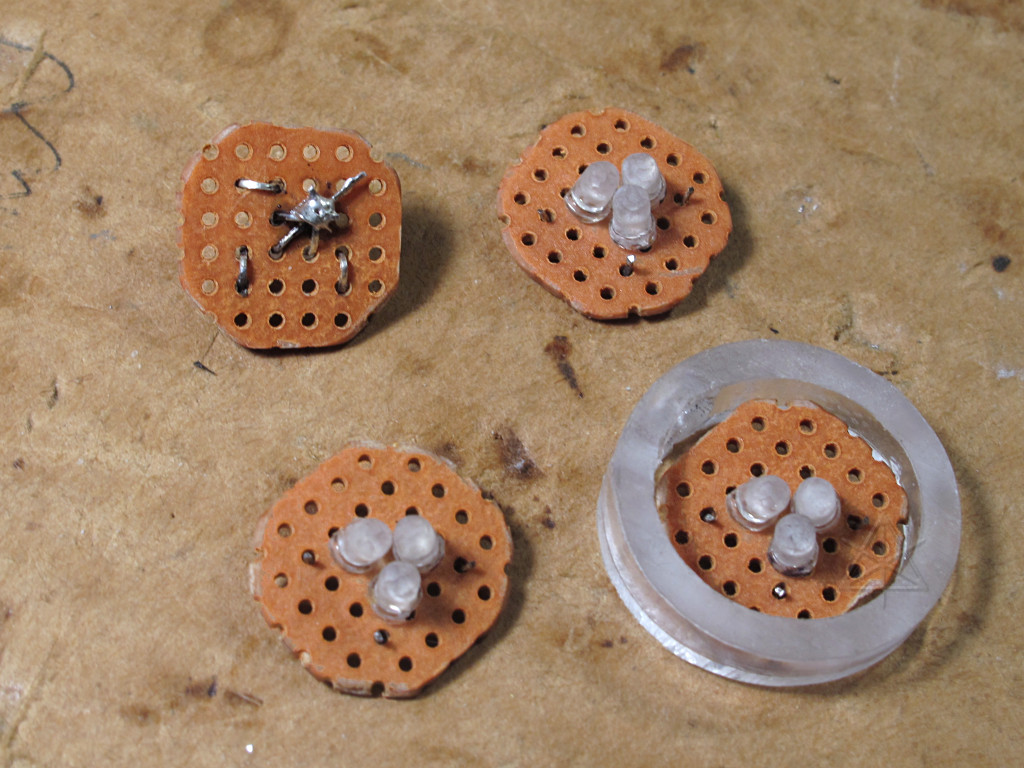

RGB clusters The "Chapter 2" hack-job modules used a simple tack-soldered self-supporting assembly for the LEDs, but instead of that "jewelrymaking" type of approach I wanted something to firmly hold the new clusters in proper alignment in the tubing.  Based somewhat on the idea in the top pieces from the that project, I shaped up some quick pieces of old phenolic prototype board -- since the LED leads are 0.1" spacing anyway, and this would also give the wiring something to firmly tie to for strain relief.

My sample "ring" of the polycarb tubing shows how the phenolic cluster bases would fit nicely inside the staff.

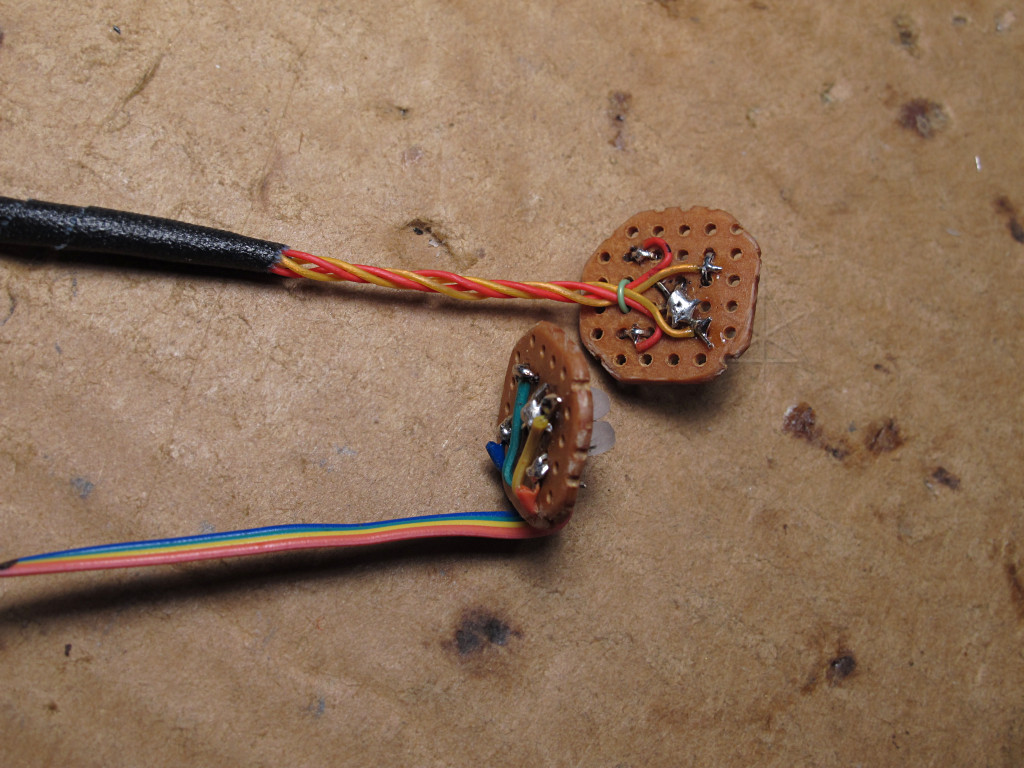

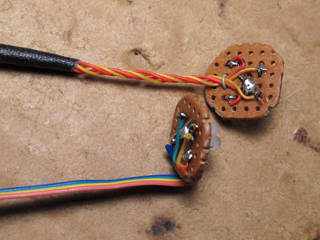

Clusters wired up Little wiring harnesses were then attached to the clusters, carrying RGB and common positive.  Even though the scale of this was a bit larger than the tap points on the Capsule board, it still felt like a stupidly tiny and precise soldering job.  The flat-laying ribbon cable would sneak up past the battery to the end of the staff, and the spiral stuff was rather ... special.  Taken from some kind of "starquad" type audio cable, its super-flexibility was well suited for the moving function it would serve.

  I had decided to reverse the mounting direction of the entire works from the way it goes into Flowtoys gear, putting the battery out at the end and the switch toward the inside.  The switch was actually one of my harder problems; should I un-mount what they had and supply my own button somehow, or try to arrange things so a small tool could go in through a hole to activate it, or what?  After inordinate angst over this and picking through the junk hoard I half-formed a workable idea: keep their switch as built and mount it toward the inside, and have some sort of sliding piece connected to the exterior of the tubing that would somehow push the button.

The magic piece, seen in the next few pictures, was a clear plastic part taken from the light-spreaders inside those little LED candelabra-size light bulbs.  Not even sure why I had two of these around, but they were just under 3/4" diameter and a perfect sliding fit inside the tubing.  Oriented a certain way, the piece could come down over the Capsule's switch board in just the right way and press the button.  As the LED clusters came together and I had a better idea of where all the parts would need to sit, the design of my "switch slider" clarified. A cluster would mount right on the slider and move along with it, pointing down into the staff to provide the extra shot of light toward the center that I wanted.

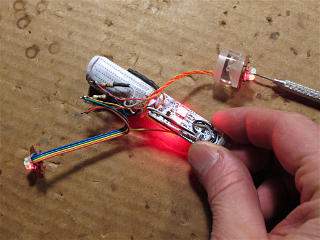

Functional test, color matching With the clusters connected up but the wiring still all sort of spewed apart, it was time for a functional test.  And of course to make sure I got all my LED colors matched up correctly, and to confirm that the driver transistors could handle this extra new load without any objections.  They're probably 200 mA parts or so; I wasn't expecting any problem there, and a quick look with the IR camera while running full-white showed that they were fine.

The magic slider pieces had by now been drilled for various wiring, cluster mounting, and the connection to the exterior.

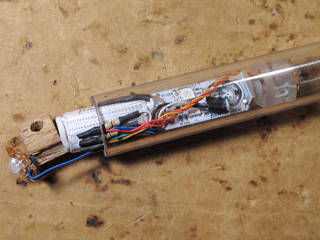

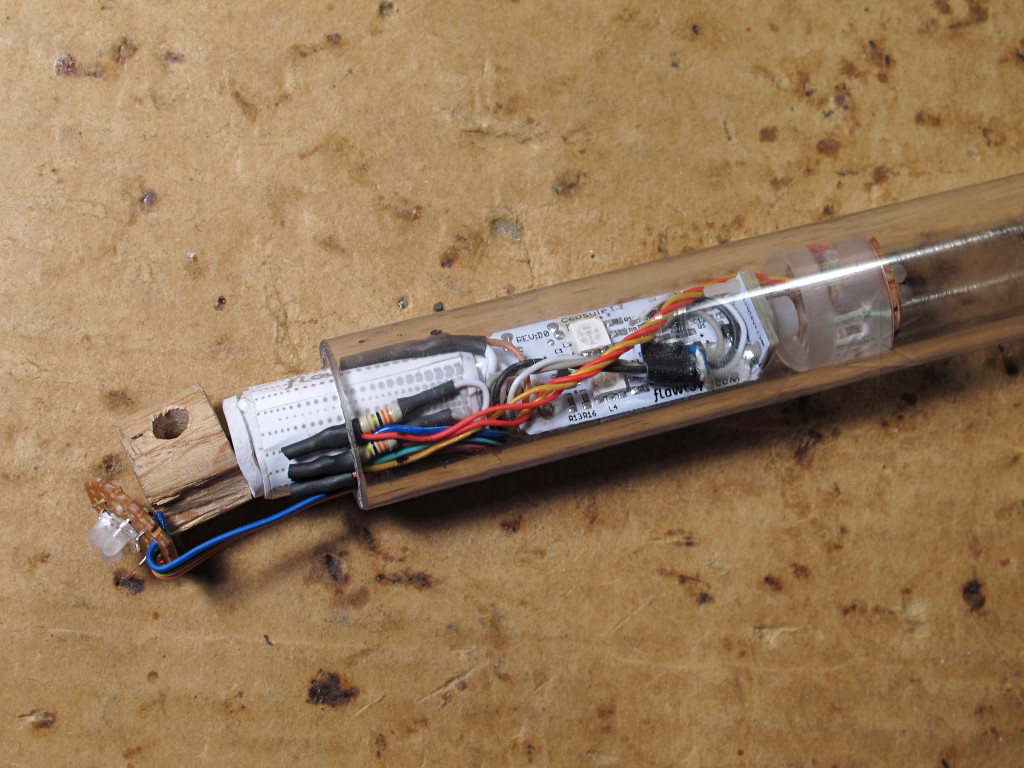

First test fit, no go My monster quarter-watt load resistors were an order of magnitude bulkier than the tiny chip components on the Capsule board, and I needed to check if these would even be able to all squeeze in next to the battery inside a short sample piece of tubing and if the wiring paths I'd initially planned would work.  The first attempt at a test-fit was sort of a disaster; the resistors went in okay but I realized that the wiring was a mess and needed to be rerouted to bundle less of it into that same area.  It all needed to be neatened up better and taped down first anyway; this was just to make sure I hadn't totally screwed myself on dimensions.

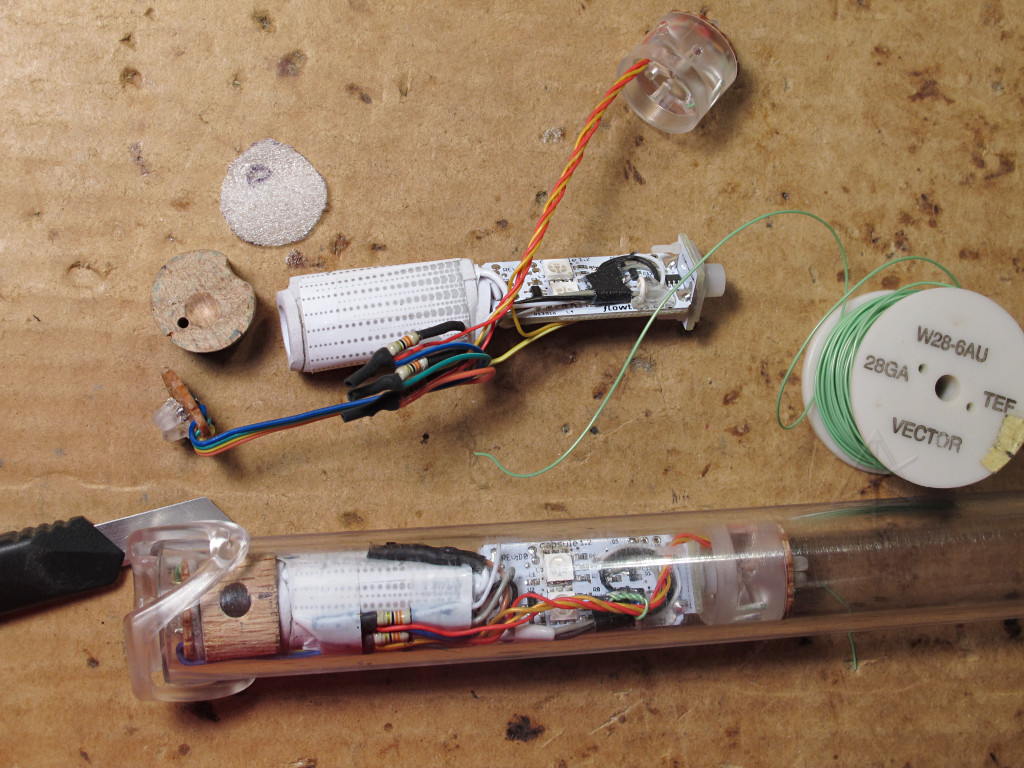

Second test fit, looking better The output feed wire slack got rerouted to use some of the empty volume over the board but not interfere with the LED output, and once the resistors were taped down and the wiring carefully laid in between them, everything slid into the "test tube" more neatly.  It was still tight, and to get the module back out I had to push on the other end with a length of conduit [so as to encircle and not mash the LEDs on the switch-end cluster].

In retrospect one could argue that I should have ordered in some eighth-watt parts, but what I had is what I had ...

The clear plastic bracket sort of thing around the end is the clip from the inside of the Flowtoys end caps.  Another elegantly designed part of their kit, these lock the caps into a pair of holes near the ends of all their 1" outside-diameter tubes, in a way that's very easy to snap on and off.  They'd do the same on my thicker-wall stuff, with the difference that the nubs would also retain a pin of *just* the right length run through my tubing and the wooden spacer block, thus serving double duty.  The pin would protrude only half the wall thickness into the inside of the tube, locking the wood in place but leaving depth for the clip nub on the outside.

The bits of wood, more of the same 3/4" dowel as used in Chapter2, had undergone some other ridiculously subtle bits of design: a relief pit for the positive-feed bump in the cluster wiring was needed, and the tiny hole and a parallel channel down the outside were to accomodate a long loop of the green Kynar wire that would stretch all the way down to the switch board and help hold the entire assembly longitudinally together.  Otherwise, I thought, the board might drift away from the battery and interfere with the throw of the switch actuator.  I didn't have the luxury of custom-molded housing parts like in the original Capsule to hold everything precisely in position, so I'd have to make do.

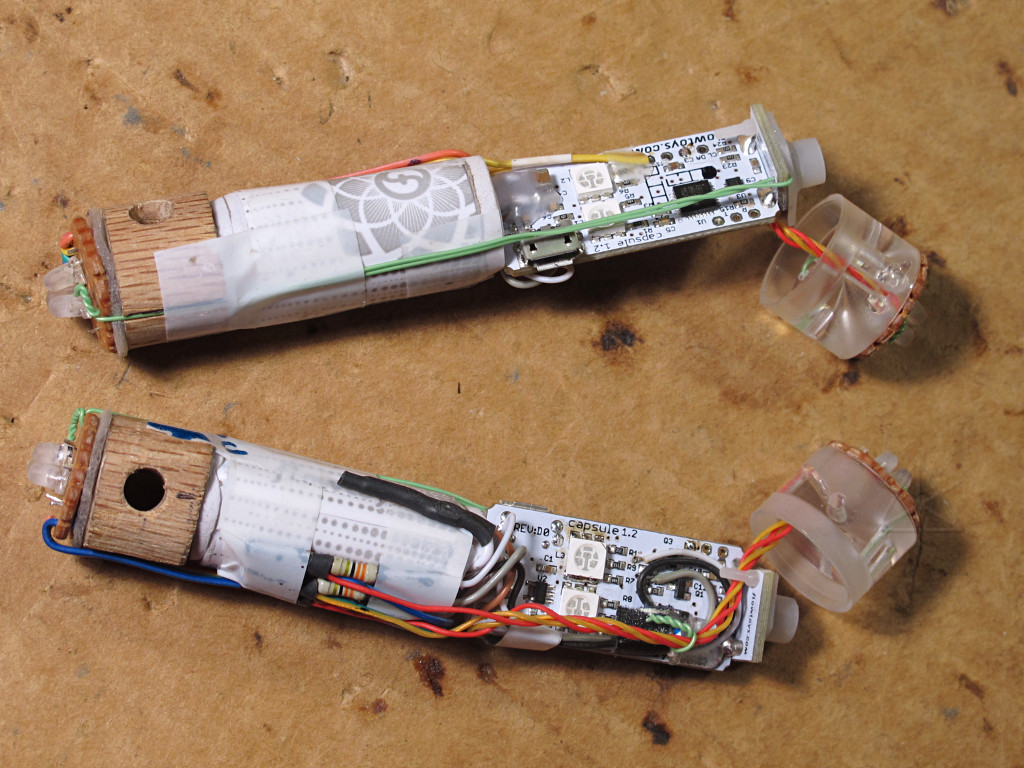

Augmented capsule assemblies Finally my augmented assemblies were all together and buttoned up and in theory, now ready for insertion.  There was still quite a bit of other work to be done first, though ...

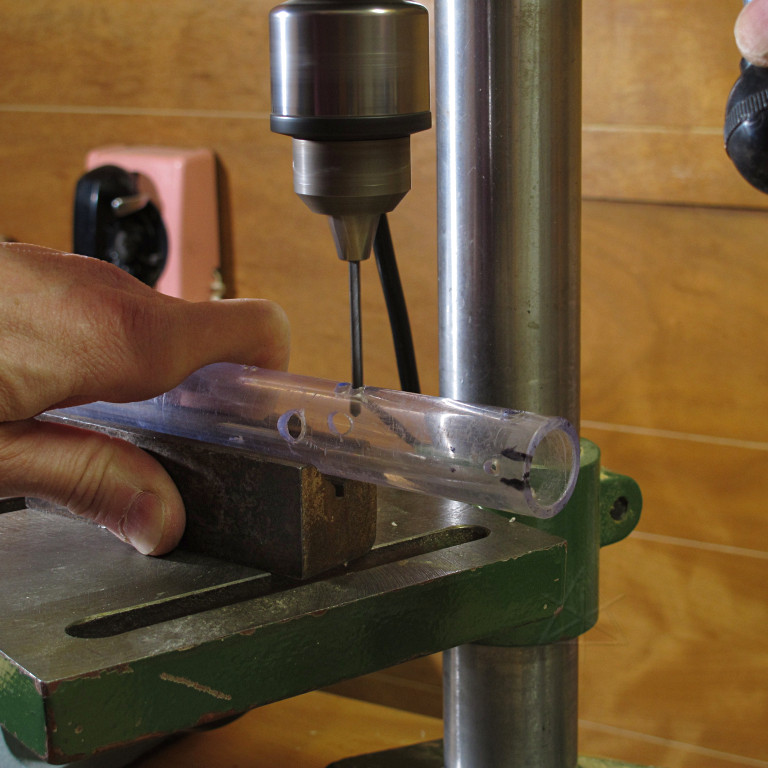

Drilling the staff tubing It was time to drill more holes into my already much-abused tubing, but not just holes this time.  Small slots were needed for the switch hack, and despite my original fantasy of being able to easily extract the innards for battery charging I realized that wasn't going to be feasible, so another slot with a half-depth larger relief for micro-USB plug shells was needed over where the charging jack would sit inside.

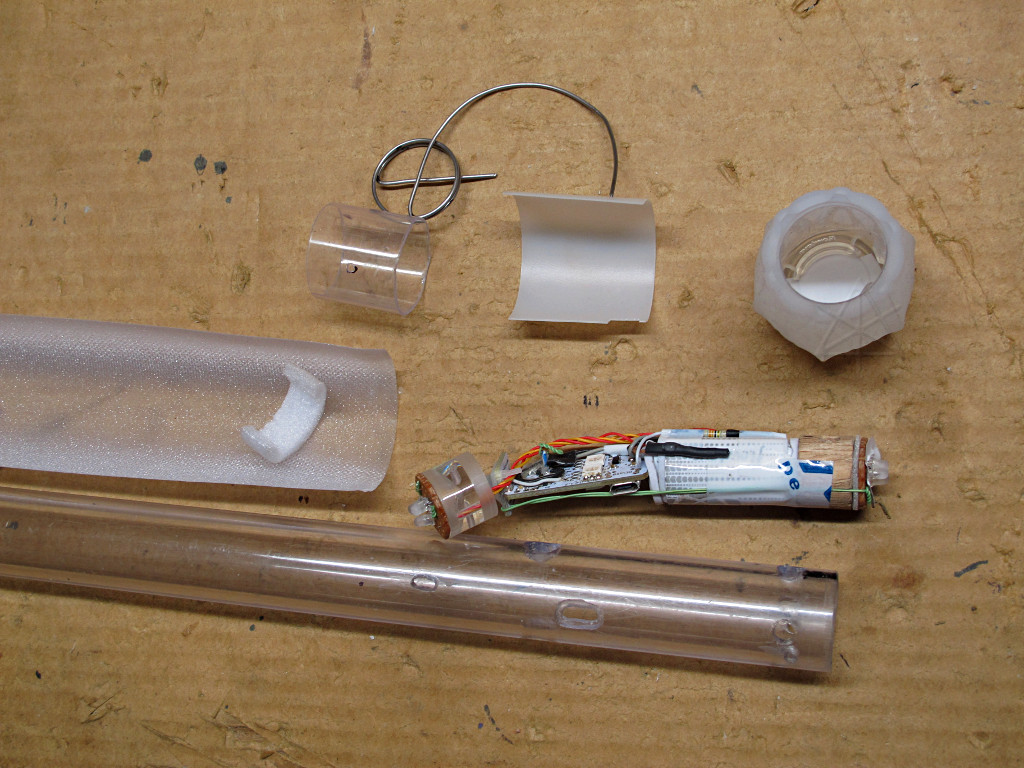

End parts ready to go in So here we have all the parts to go into an end.  The semi-sparkly diffusion membrane came out of a kids-toy sword and had already been used in the previous incarnation, along with small bits of white foam to diffuse side emission from the LEDs.  The development of the switch actuator was still in progress, shown by the not-quite-finished spring and sliding sleeve piece.  A supplemental diffusion layer made from a section of milk-jug would encircle the Flowtoys module and its LEDs.  And a small bit of white paper got stuffed into the end-cap, to try and redirect light from the end cluster out toward the sides rather than out the end of the staff where it wouldn't be as readily seen.

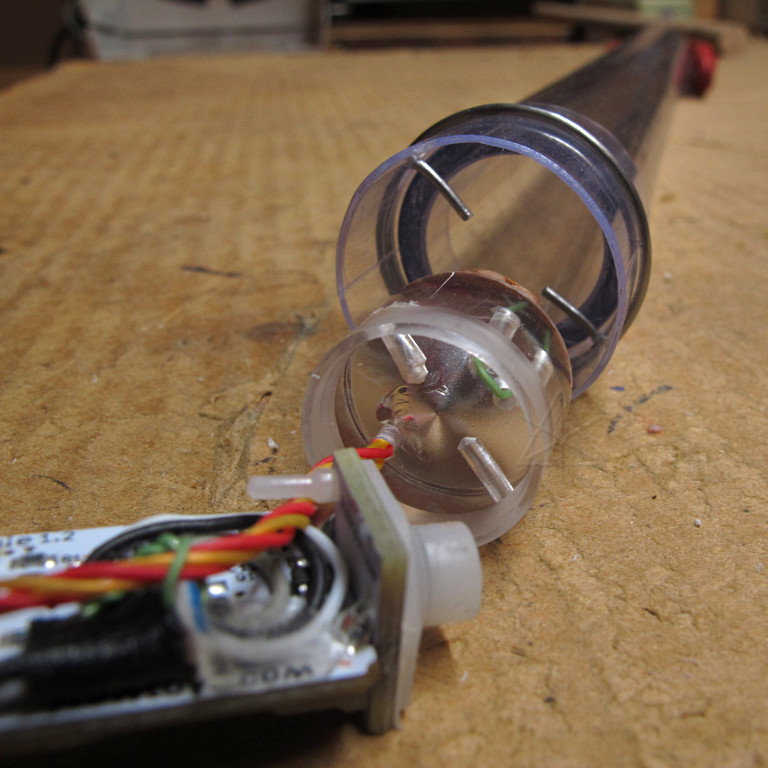

Sliding switch concept The switch-actuation concept had finally gelled into something that would work: an outer sliding sleeve would carry a custom-shaped spring along through small holes, which would then poke in through small slots along the main body of tubing into the clear piece in front of the switch.  A short end-ward slide of the sleeve would push the button.  The clear sleeve was a section of the "blade" from the same toy swords which happened to fit *over* my 1" tubing perfectly, and the springs were a re-bend of some stiffening wire from old plastic dryer hose.

  This was a lot to put together at once, and it had to go in the right order.  The diffusion and foam pad went in first and only just so far down, so that the slider's LEDs would just poke into it at rest.  The spring around the actuator sleeve needed to be pulled open just enough to pass down the outside of the tubing, without stretching my hand-bent spring back too far, and be cocked and ready to drop into the inner sliding piece.

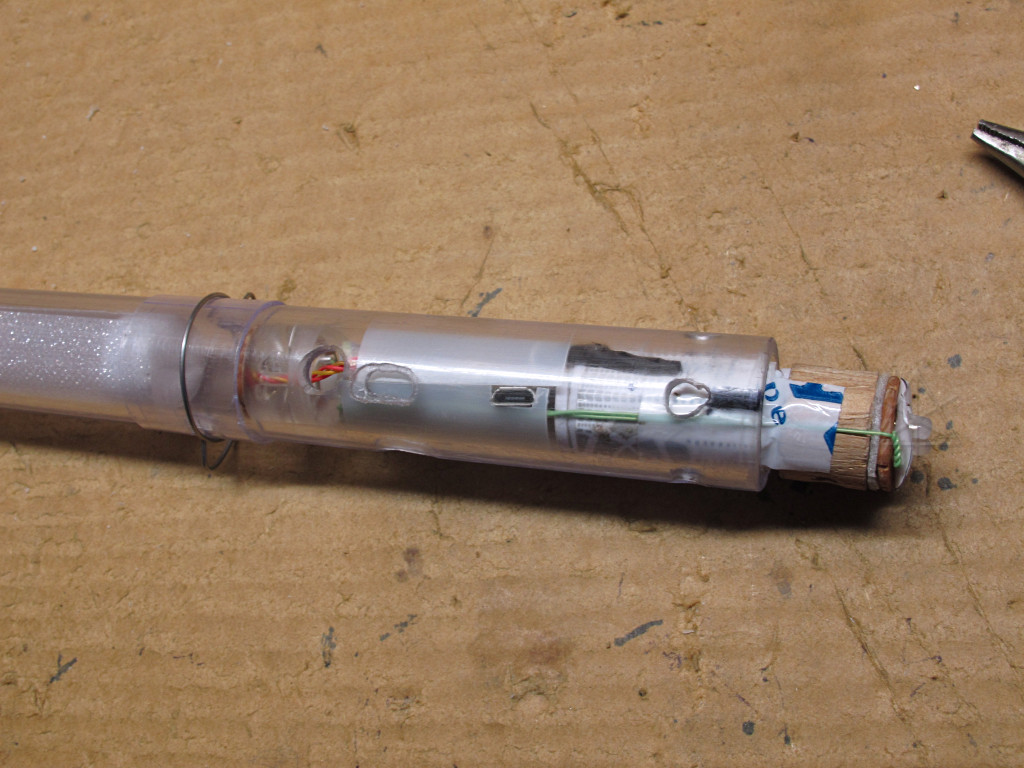

Final assembly being worked in Then the main module could be pushed in, with due care to avoid mangling any of the parts, and maintaining the right insertion angle to make sure the charging jack would wind up directly under the slot cut out for the purpose.  Whether or not the various distances from the end of the tubing had been calculated and cut correctly remained to be seen.

A weird fiddly bit was to work the inner slider around to the right angle for the spring ends, as it was free-floating inside there and not quite aligned right where it landed.  This was done with two tiny pins through the sleeve and access slots, turning the piece a little at a time until the springs could snap in.

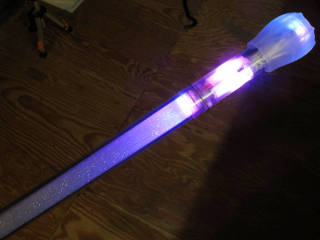

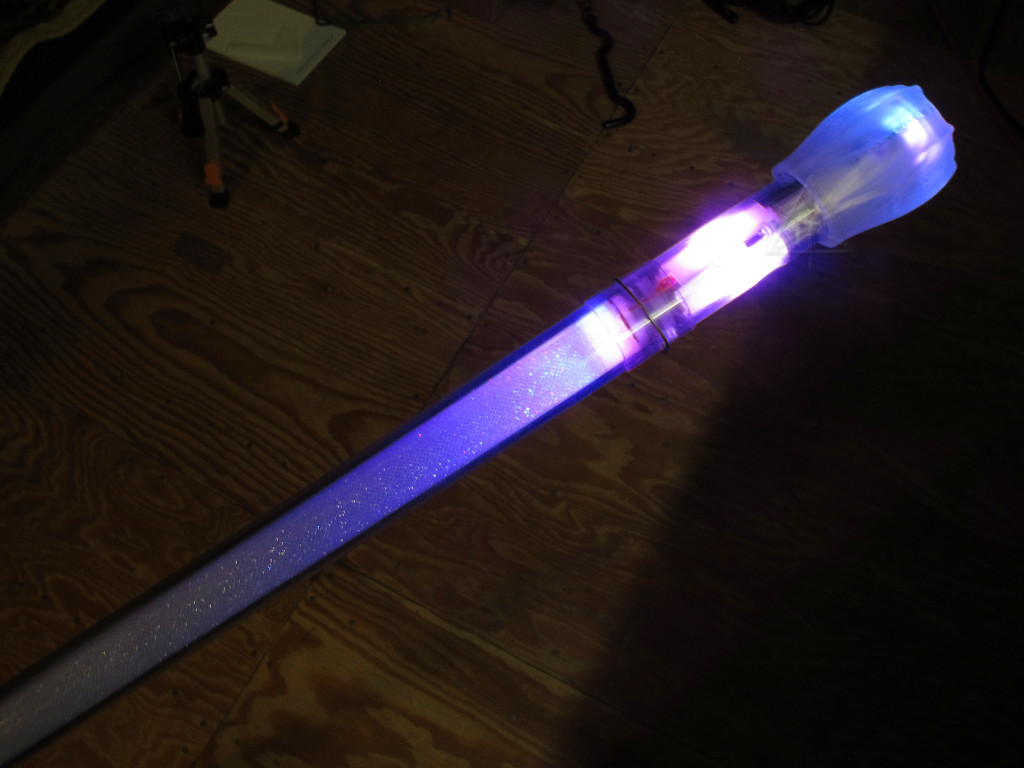

It glows! Alignment and final position seemed to work out okay, and more importantly the module could be powered up and down quite easily from the sliding actuator mechanism.  No binding, and a reasonably positive action against the button.

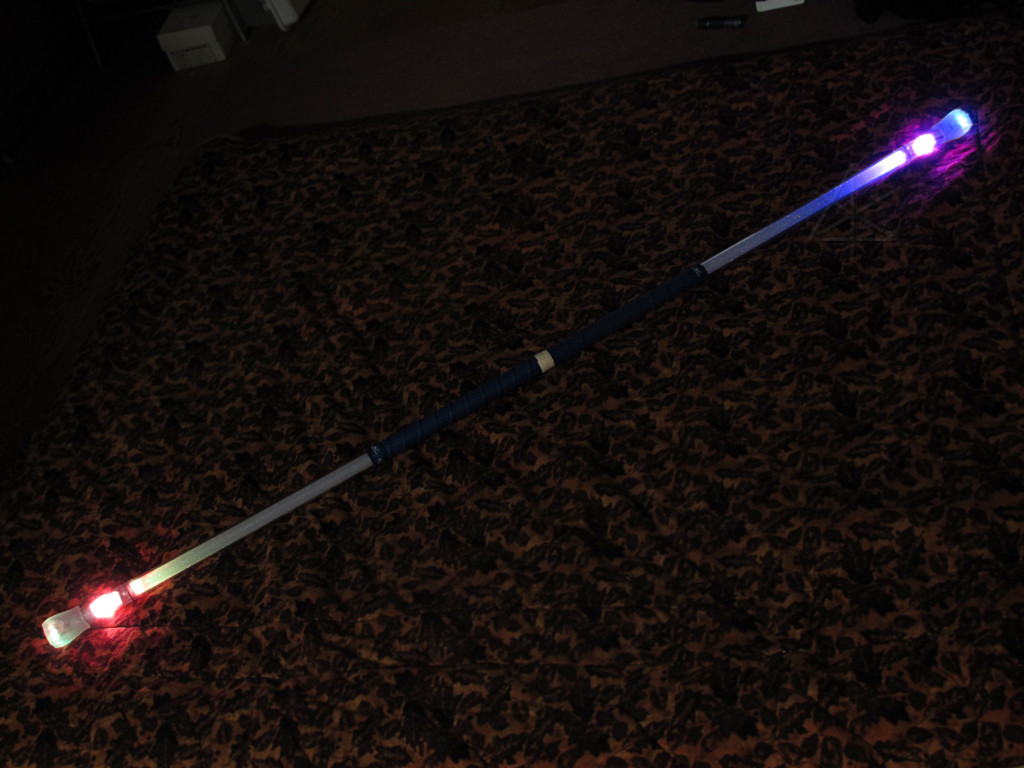

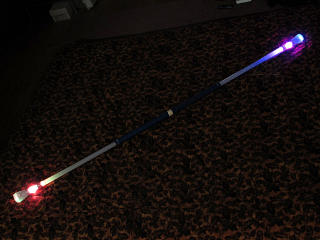

Both ends done Both ends went together with about the same attention to picky details, and my new prop was done!  No particularly noticeable rattles, and it took a couple of drops in the yard that evening without apparent incident.

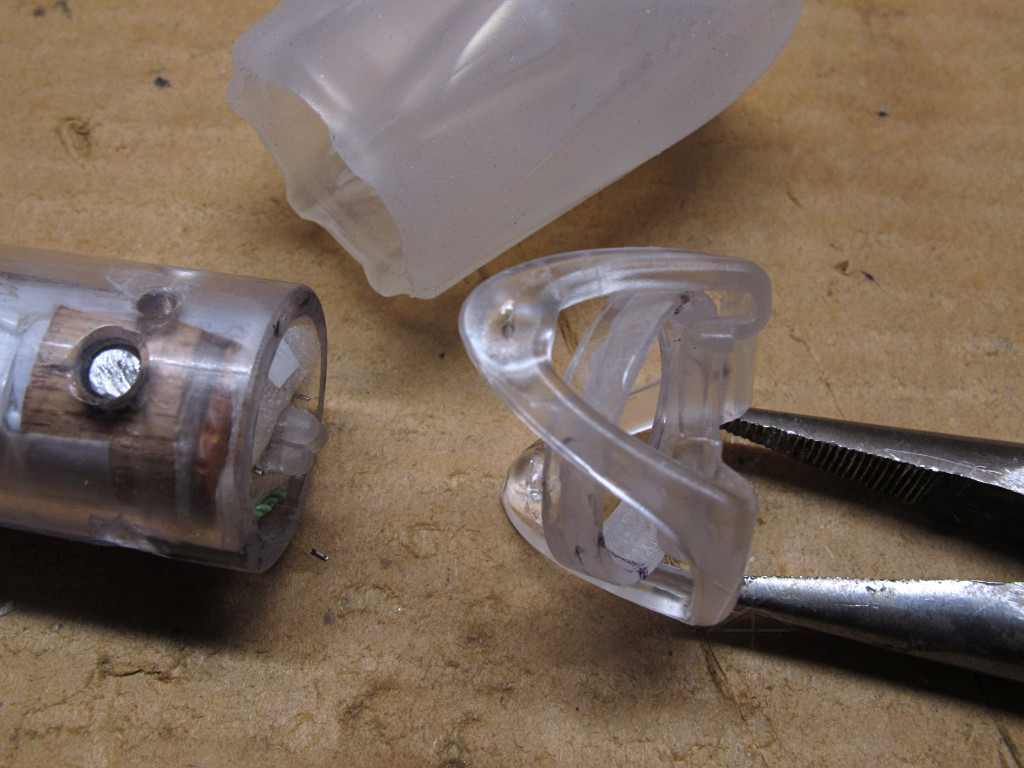

Additional spacer ring under endcap A week or so later, however, I found that my endcap retention-hole spacing was a little off.  It turns out that without the original Capsule housing filling the inner part of the clip, the clip can compress a little more and the inner flanges could dive into the tubing on an end-hit more easily than I thought.  So it was starting to guillotine the end-cluster wiring a little, to the point where one of them actually broke and I noticed that the blue LED wasn't working.

After repairing that I realized that the tubing needed to be exactly 0.2 inches longer, and the way to get that was adding a spacer ring custom-shaped to fit up around the clip flange and bear on the support surface beyond that.  This would keep it safely off the LED board under just about any abuse conditions.

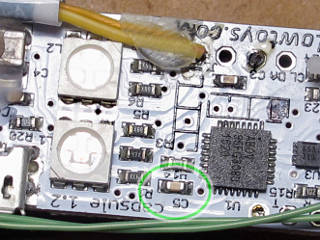

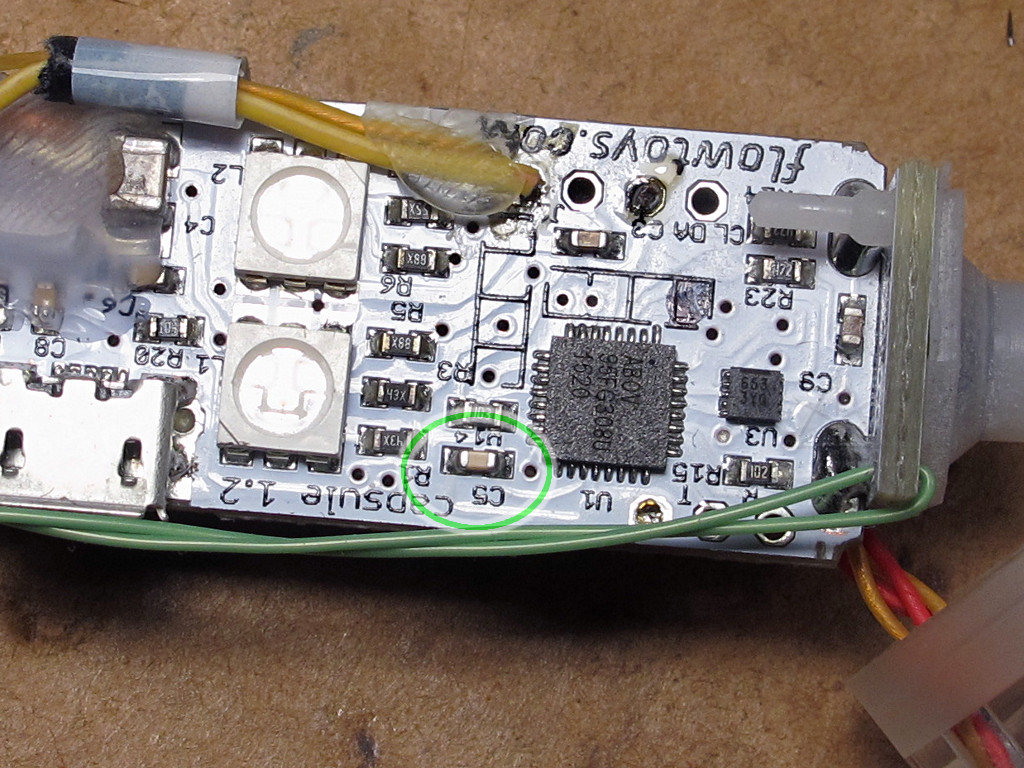

Processor reset input The microcontroller is an "Abov" 8051 knockoff from Korea, for which the documentation is freely available.  The notes that come with the Capsule mention a very rare chance of a software lockup or crash, mostly due to static discharge, and offer the way to get out of it and reset the processor as simply shorting the battery leads for a very brief moment.  Sure, that'll work, but shorting a lithium battery is never really a great idea.  Here's something much gentler which has the same effect: short this tiny little capacitor at C5, which grounds the actual "RESETB" input to the chip and hard-restarts it at address 0000 just like initial power-up would.  In that first-powered-up state there are a few interesting modes one can cycle through, such as full-on red/green/blue tests, full white, and one that checks the battery voltage thresholds [discovered by varying an external power supply feeding the one on the bench].
  The light angle in this shot, sort of grazing the board, shows the best way I had to determine where the circuit traces actually go by looking at the subtle humping-up of the mask over the copper.  The masking is opaque, so the common trick of shining a light through the fiberglass doesn't work either.

Here are some other fun facts about the design.  It's certainly not a full reverse-engineer or anything, there's no point in trying to do that and the "security" fuse is probably blown to lock the code anyway, but just observing some of these points had me really respecting some of the things the Capsule designer had done and thought of.
[For the relevant folks: Kudos once again in addition to the email I sent into FT, if you wind up reading this page.  For you it's undoubtedly all in a day's work; for me it's gaping in childlike junior-engineer wonderment as I stare at the scope traces!]

  • LED brightness PWM is done at around 30 kilohertz, which you'd never see when the prop is spun around, you'd only see the intended lower-speed pattern of whatever the setting produces.
  • The "empty battery" indication is at 3.5V; full charge seems to be considered right around 4.0V.
  • As battery voltage increases above 3.5 volts, modulation gets linearly adjusted in general to produce slightly *less* output as power supply voltage rises.  This keeps brightness more consistent over the whole usable battery range.
  • The load resistors used in the original unit, confusingly marked in the new "EIA-96" scheme, are as follows:
        Red: 81 ohms
        Green: 27 ohms
        Blue: 37 ohms
    This had me wondering if green and blue had gotten their parts placement reversed, but the color balance seems fairly well matched so perhaps it was thought better to limit the current through the blue with its slightly higher forward voltage.  For my clusters I used 47, 33, 33 for each pair because it's what I had in stock, but I might trim those later for a little more brightness.
  • Almost every separate piece of the Capsule has "flowtoys.com" prominently emblazoned on it.  They are clearly [and quite justifiably] proud of this item.
They're not the only players in this sort of market, of course -- for similar hacks or just something else to play with as it comes, there are other offerings such as the Trick Concepts Ultralight which might provide a slightly cheaper starting point.  Only time will tell where any of this goes from here.  In the meantime, I've still got lots of practicing to do, as the best protection against dropping a prop is to gain the skill to not drop it as often!
