Most of what I considered major items remaining on the to-do list were done by now, with a few small things left and various bits of fussing inspired by more discoveries. Most of this section has to do with going through the second winter, armed with what I learned from the first one. |

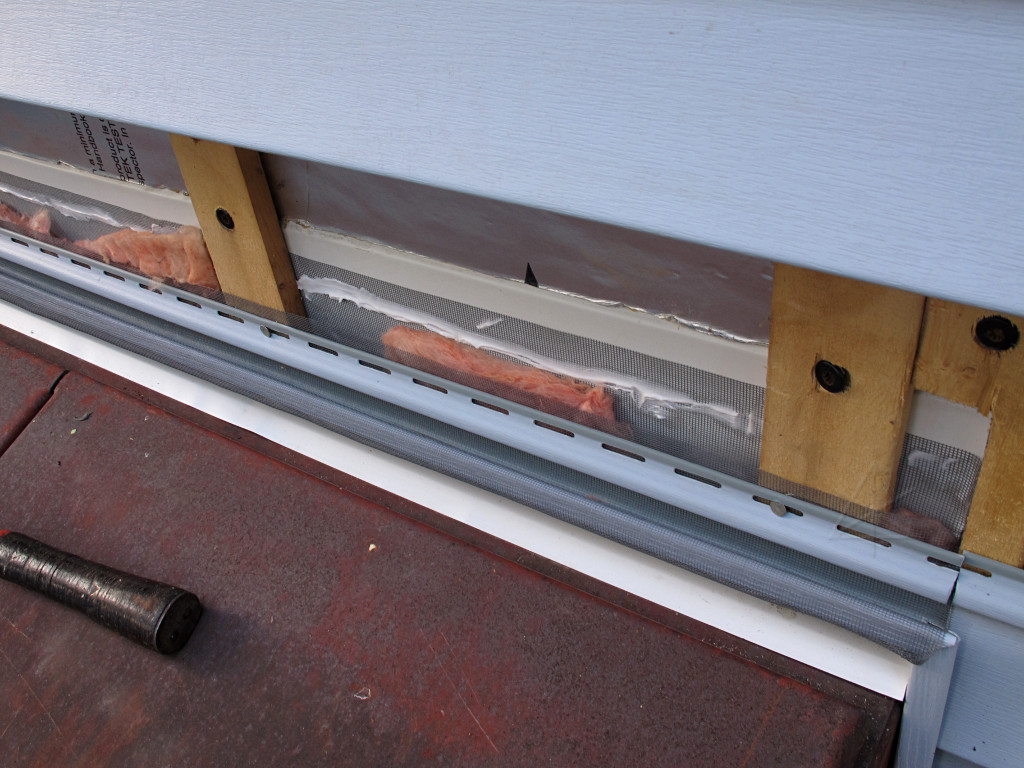

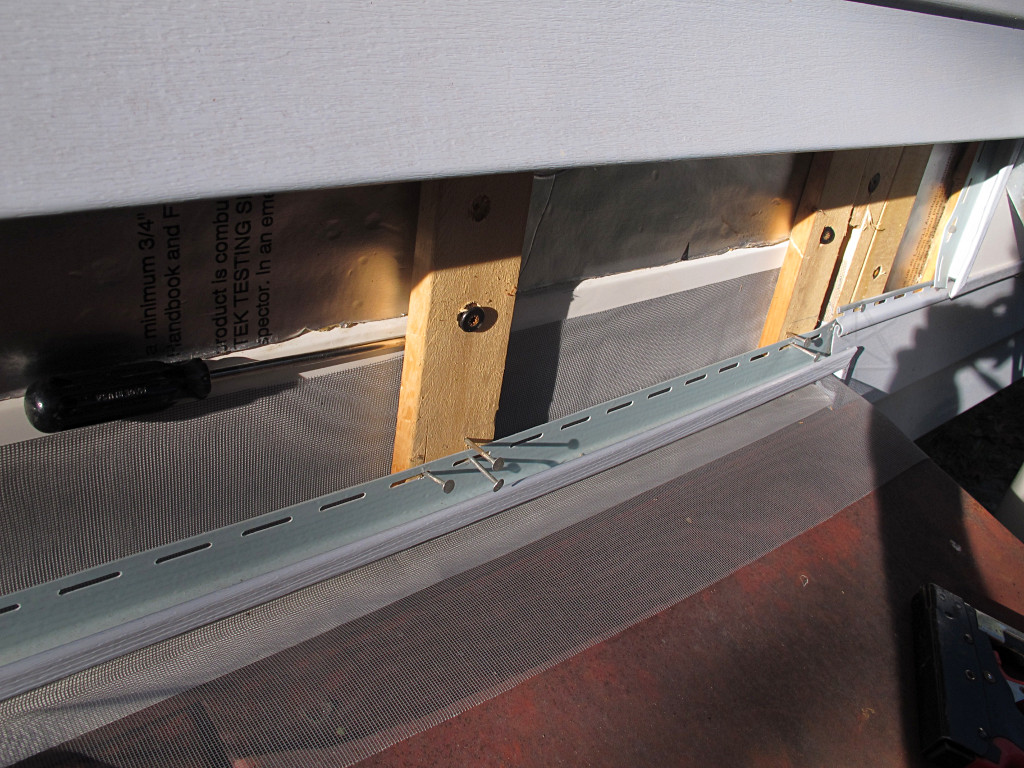

Perimeter defenses
[Click any image for a larger version.]

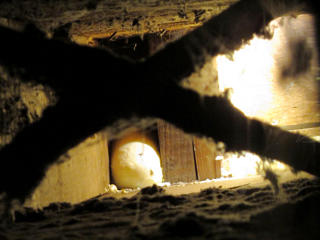

Funny story about intruders of a somewhat larger persuasion. One morning
I was sitting quietly inside, and from somewhere above me I heard a
muffled thump, swish, scrapescrapescrapeslidescrabble ... and after a
very brief pause another *thump* from outside the window at ground level.
I looked out to see a squirrel walking around looking *very* confused;
it had clearly made the jump from the pine at the southwest
corner over to the roof as they used to back in the days of nice soft
rotting wood to land on, hit the metal roof on the steep cheekwall part,
and could do nothing to stop sliding all the way down and off the end.
Completely unhurt as they're tough li'l buggers; it eventually put on
its best "aah, meant to do that!" game face and scampered off.
Time to trim that tree's near branches back a little more, I suppose... |
Other little details
Way back when the electrical panel got upgraded, the electrician had
mentioned adding a whole-house surge protector especially if I was
installing a heat pump. I declined at the time because it sounded
like a superfluous up-sell I didn't need, but then I started looking
into what they really are and what's involved in adding one. Bottom
line, I did a little research into clamping voltages, kilojoules,
MOV versus SASD devices, and the wide pricing range for something that
might soak up errant spikes in the electrical system. The guys over at
hvac-talk
seemed to favor a few of the less expensive units that seemed to be
completely adequate for helping protect things like heat pump inverter

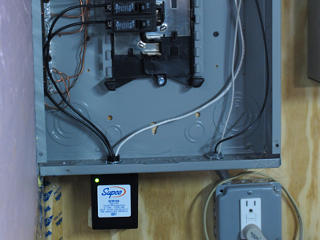

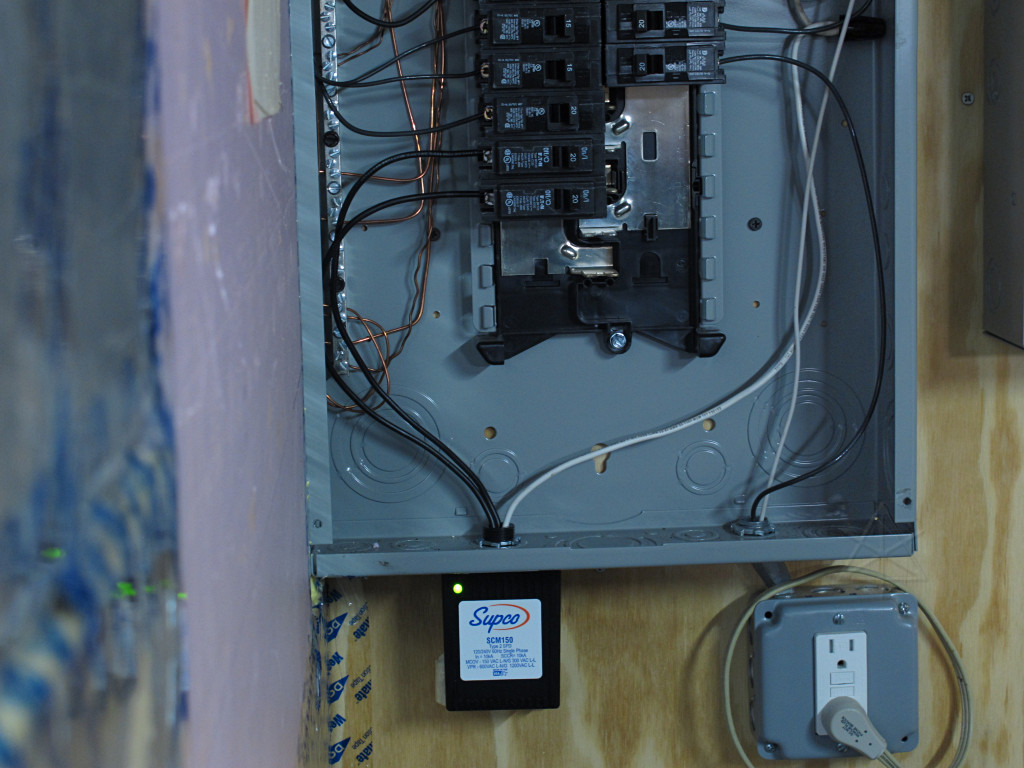

boards, so I went with this Supco [apparently the same as Sycom] mounted
in a convenient knockout under the panel and hung off an additional
pair of breakers. Installation was totally straightforward.
It's not easy to know if these are actually doing their job or not, but the idea is that if either of the breakers trips or the LED goes out, the unit has probably taken a good hit and partially self-destructed and it's time for replacement. |
Update:
In early 2016 I received a one-line piece of email out of the blue from someone I never heard of, saying "get rid of the Supco its a fire hazard". Before simply believing that I did quite a bit of research, including talking to some design-level people at both Supco and Sycom who originally designed the product. There is more info findable on the net including this review of the SCM150, but correctly points out that there have been no official recalls and installations that had problems were arguably on HVAC branch circuits and mostly located outdoors. While the units are supposedly weatherproof, that is far less optimal than an indoor installation right at a service entrance with a good solid low-resistance neutral connection, as I had. The major cause of overheating was a *sustained* large neutral imbalance, causing continuous overvoltage on one side of the service, which the Sycom/Supco design would likely fail to either fully absorb or open thermal protectors to disable itself, leading to thermal runaway. | |
Even armed with all this info and some assurance that my installation
was at far less risk than typical HVAC jobs, I decided to update the

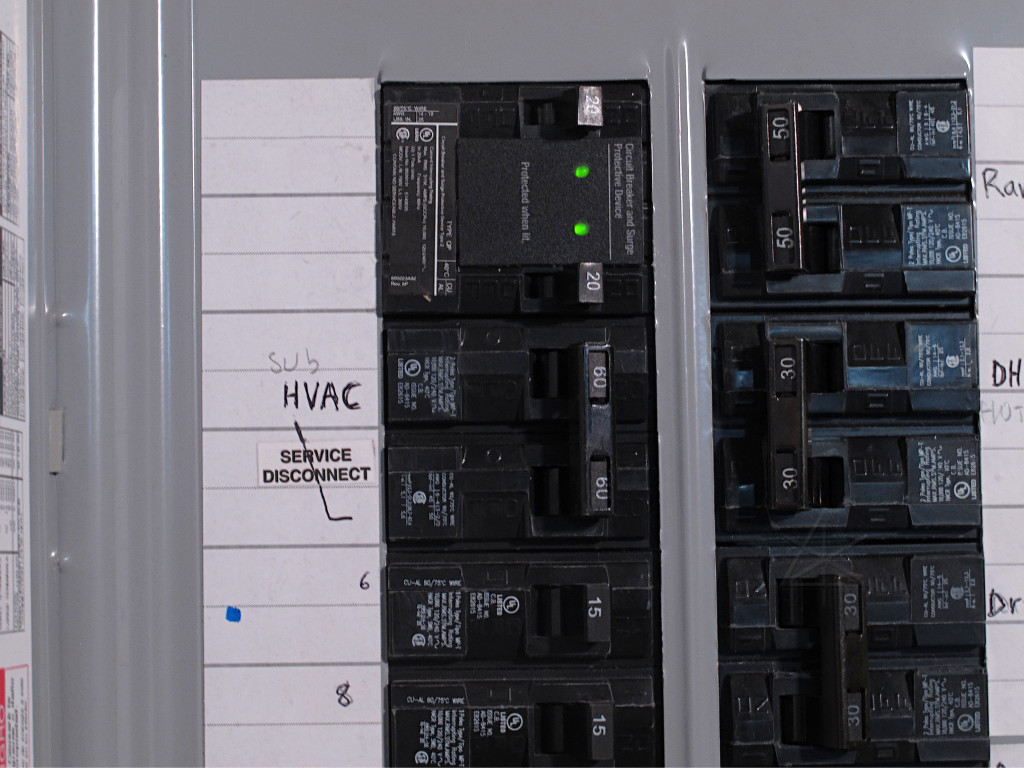

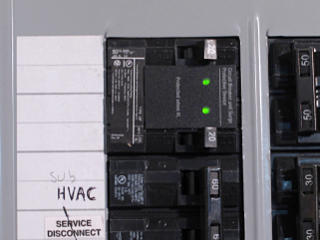

surge protector with this convenient
clip-in unit
from Siemens, which fit perfectly into my Murray panel right up
near the main connections and has a neutral lead running all of
three inches straight to a solid bus bar.
It also provides two spare 20A breakers for whatever expansion I might
want to do later.
The Supco remained installed but simply turned off for the interim; it
could serve as a backup protector if the Siemens got hit and/or extra
surge capacity over severe storms or something with a watchful eye
kept on it.
One could naively say that if having a surge protector is good, having
two is twice as good, right?
Interestingly, the SCM150 isn't even offered as a product on Supco's website anymore, and no equivalent whole-service protectors are listed at all -- just single-circuit consumer grade plug-in types. Maybe they decided that the better part of valor was to get out of the load-center level market entirely. |
Into the second winter

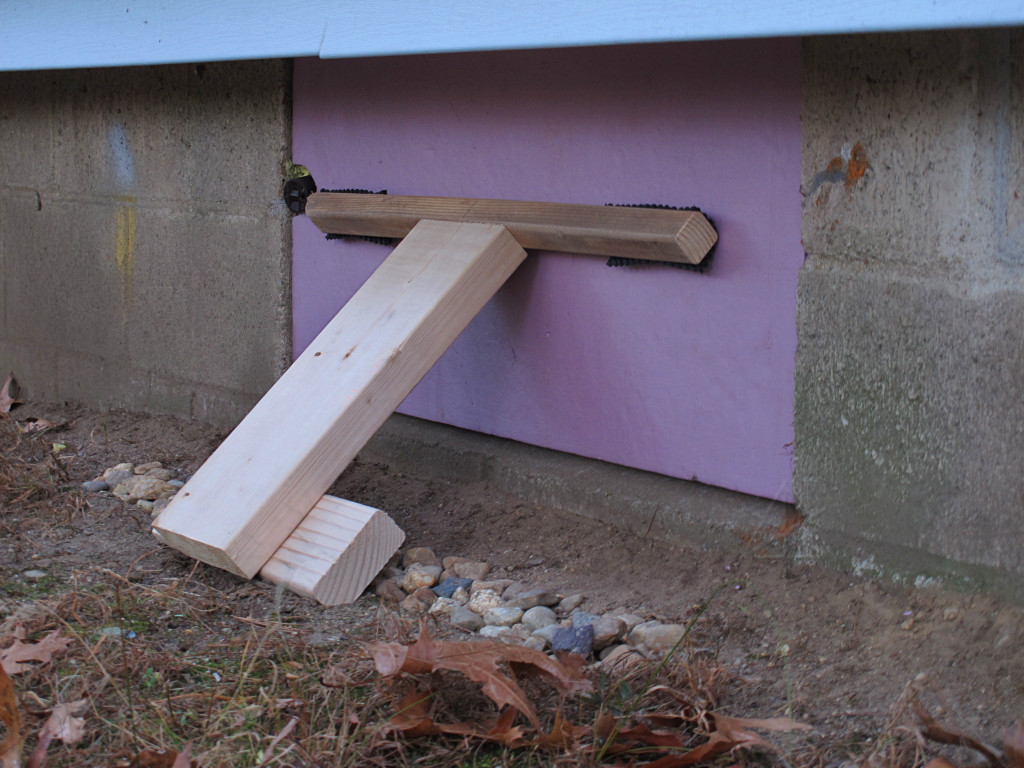

A new idea to try was temporary exterior insulation for the two basement windows. This consisted of a couple of accurately cut slabs of foam and a couple of simple "leaners" to keep them in place. The hidden feature is the screws in the lowest crosspiece protruding down into the dirt a little to help keep the foot of the assembly from sliding back. With the outdoors going cold and dead I wasn't worried too much about wood in contact with the ground, as these would get taken up again in the spring. | |
These actually had a quite profound effect on the interior temperature
of the basement windows. The outer frames were still a little cold due
to direct contact with the concrete, but the "box" of still air formed
between the window sash assembly and the foam raised the temperature
of the inner panes to about 57F where they had both been in the mid forties
or lower before. The merits of exterior insulated window shutters are
well known -- Thorsten Chlupp discusses them quite a bit in his
long video
on passivhaus envelope design in Fairbanks AK.
The only drawback was having to remove the assembly on the west side window once in a while to fling the dryer hose out, but laundry could wait for a less frigid day to minimize overall loss. For me, the minor inconvenience of *not* having a permanently ducted dryer outlet and its associated inevitable and horrendous leakage is far outweighed by keeping the envelope nice and tight. Such a setup might not even be to code but wtf, it meets my requirements. |
Chasing more air leaks
I could finally do some more "blower door" test runs, or more properly
"blower window" as
my depressurization rig was the box fan upstairs with some blocking
around it to contain airflow. It was plenty of pressure differential
to make cold air come howling in wherever it would and get spotted on
the IR. It was a reasonable suspicion that a year of temperature cycles
and settling could have opened up new gaps in the shell just about
anywhere! After some time of running it I found chilly spots in some
unexpected places -- in general it seemed like air could slowly diffuse
right through the foundation wall *and* the EPS styrofoam wherever
it was still exposed. But as I've learned it's not that surprising, when
you think about the

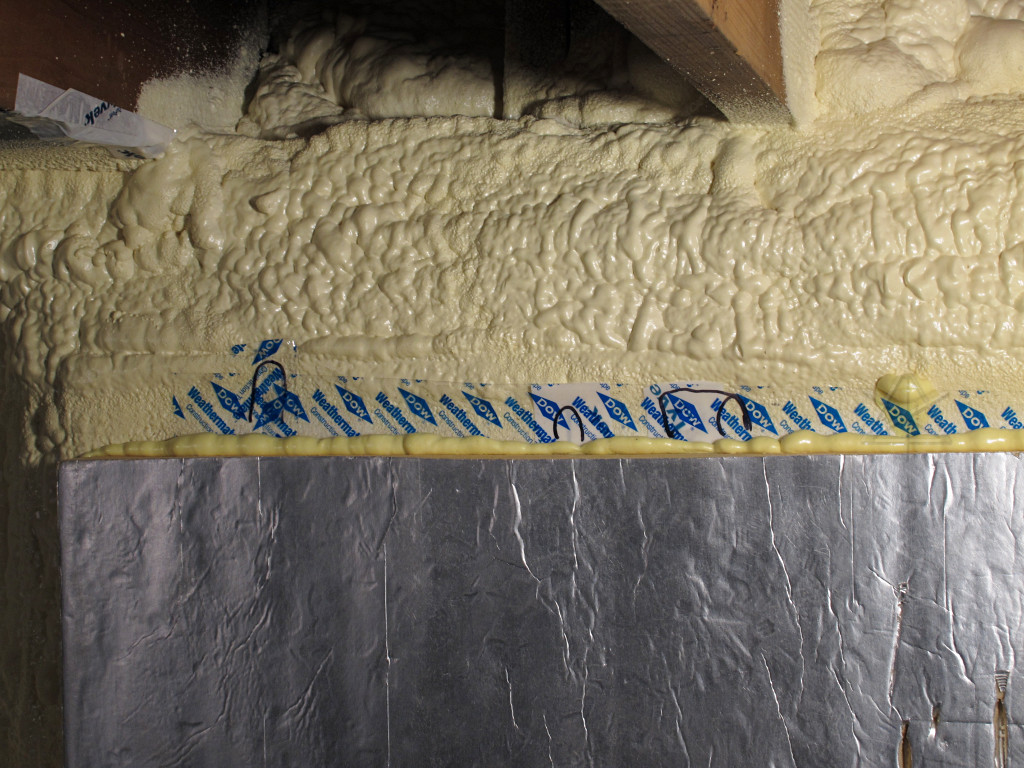

porosity of both substances. At one place in particular I had previously
slapped some tape along the old stuff above my new insulation layer thinking
that it would suffice to seal it up, and that turned out to be a bad
assumption. The two pictures are of the same area, and the issues
are obvious.

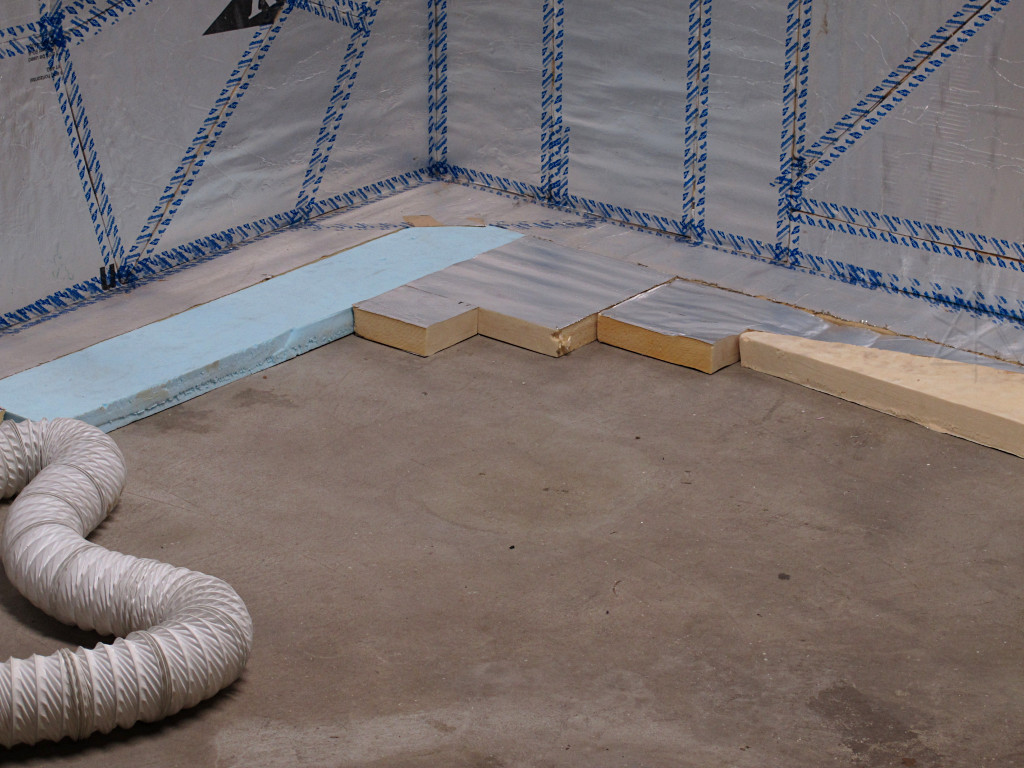

I wound up stripping off most of that tape and caulking deep into the little butt-joint seams in the EPS that were bringing in most of the infiltration, and then adding another layer of sprayfoam along the top of everything. Where there weren't actually visible seams the remaining exposed EPS, as little of which showed anymore, definitely became a bit colder during the test which could only be from incoming exterior air working its way in *somehow*. It was easy to become rather obsessive about more air-sealing over the course of that late fall, as I still appeared to be fighting some remaining issues near the sill pans at the front and side doors. The problem there was that leaks around anything mounted in a rough opening can let air wander in and travel just about anywhere through the framing structure to show up in unexpected places. The root cause was basically unfixable now, but I could try to go after the secondary effects. It was a bit of whack-a-mole for a while -- I'd stop one air leak and a couple of smaller ones would show up elsewhere nearby where they weren't before. But steadily less so, and I was prepared to hunt down as many accessible endpoints as necessary to minimize those leakage paths. Ultimately dollops of sprayfoam got squirted into quite a few little corners and joints around the new reinforcement framing under the front door as it appeared to be needed and even some subfloor board gaps at the edges. The IR imager gave greatly enhanced visibility into all this, although the remaining cold spots I could find started being more likely from conductive loss through wood or thinner spots in the sill-area foam job than from actual air leaks. For more perspective on all this and good examples of what may need to get chased down in a typical home, watch this video from the folks at "Green Dream" in Chicagoland. One thing to also keep in mind is that wood shrinks a little when it gets dry and cold in the winter, which may affect how doors and windows fit and close, and I needed to stick a few small bits of the high-compression open-cell type foam strip here and there to augment some of the door weatherstripping. On the bright side, the other recent changes seemed to have succeeded nicely. The basement was generally much better sealed, and even that dubious cut-n-cobble job in the storage shelf looked great, no cold spots at all in there. I didn't see any problems around any of the "footing" for the new polyiso so I'd apparently done a pretty good job on sealing that up as it went in. Persistence paid off: overall the place was definitely quite a bit tighter than when we had done the actual post-reno blower door test -- probably pushing passivhaus level by now, although I didn't have a way to actually measure that. Running the depressurization for over an hour without the house notably cooling down at all and only showing minor isolated and explainable cold areas was a pretty good indication, though. Back on autopilot It was time to head off for another roadtrip for a while, and this time I left the ventilation enabled on its minimum setting as the house started to cool down just prior to leaving. This would ensure that the relative humidity wouldn't climb too much as the interior drifted down to the "setback" temp I'd set at 52F, which I definitely wouldn't be around for. By the time I got on the road everything had pretty much equalized at 57F and the basement slab was still slightly *warmer* than that, so it would take quite a bit longer to reach setback against an ambient in the mid-30s at the time. Winter heat-pump strategy had become a single programmed event in the controller -- on weekdays, simply shut off at noon [e.g. go to the setback temp, the way Daikin defines it], where it would remain unless I was home to actively turn it back on after peak hours were over. So I didn't have to change any of that before taking off. I returned in a leisurely way in the early days of January, overnighting at the home of a semi-distant relative in rural Pennsylvania right as one of the winter's several big snowstorms arrived to blast the northeast. The run up the backbone of Virginia had become progressively more, uh, interesting that afternoon and it was nice to be able to get away from the highway and its rapidly increasing collection of vehicles slid off the road toward evening. As the storm passed over it got *wikkid* cold, down to 0F or less by the morning when I helped her shovel out and began my last leg for home. Said relative had recently replaced a woodstove with a small propane-fired stove that simply exhausts its burned gases into the living space. I was mildly horrified, thinking there was no way these were code anymore, although I know that unvented combustion heaters of all sorts are in common use all over the world. With a source of clean fuel I guess they're not all that hazardous but on coming into the house I could definitely smell some combustion gases and the humidity in there was likely higher than it should have been and landing its share of condensation on her windows. I urged her to go buy a CO detector asap at the very least. On the bright side this little burner, located at one end of the house, was actually keeping the whole place warm by itself with no help other than a small booster fan to push a little air down the hall. Her late husband had put some good work into tightening and insulating the house, and it appeared to be paying off. That night's storm was the first or second in one of the coldest winters on record for most parts of the country, which kept everyone pinnned under the "icy polar-vortex finger of death" until well into April 2014. In the meantime it dumped lots of snow and ice everywhere, paralyzed the entirety of Atlanta GA, and probably boosted national oil and gas profits beyond all expectations of corporate greed. The oversensationalized "omg this one's going to be huge" reports from weather.com and such became a commonplace weekly heartbeat, and at some point I think they even gave up on their apparent imperative to name every storm that whisked through because there were so many. Naturally I was like "bring it", because it would enable a lot more testing and experimentation on the house with a nice steep temperature delta going on. |
The basement was exhibiting some of the nonlinearity I expected, holding
a delta of only 2 or 3 degrees under the first-floor setpoint instead of
about ten once I brought the upstairs back to normal.

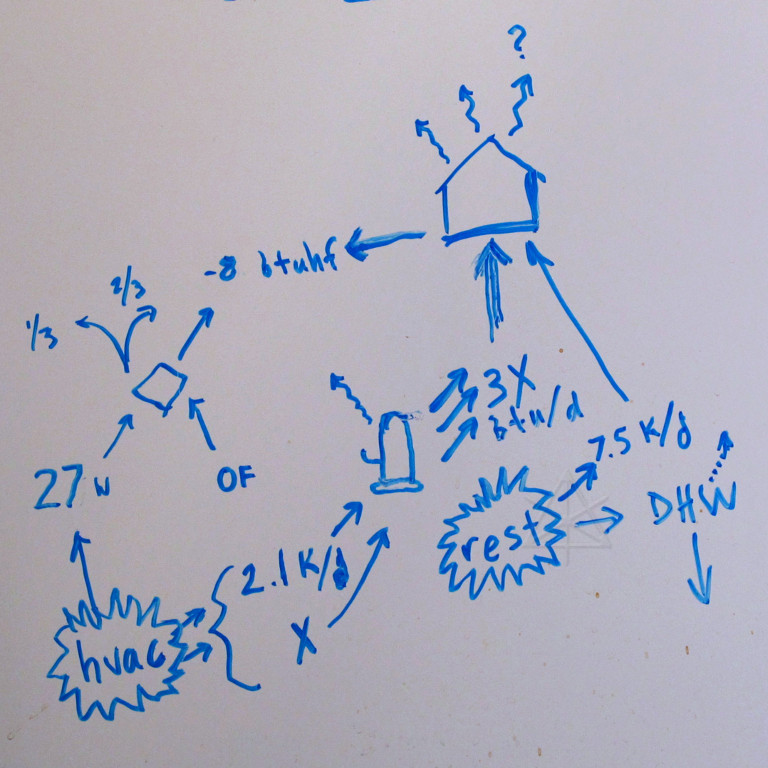

Early calculations
from energy use and heating degree-days over the time I'd been gone
indicated some improvement in the whole-house BTU / hr / degree-F figure I
kept reducing all my data points down into, but not quite as much as I'd
hoped from the re-insulation job down there. On the other hand, simply
having the lower setpoint seemed to drop the whole-house btu/hr/F figure
itself by about 25%, using appropriately compensated HDD figures.
But none of this had gotten a nice long run against the deep cold at a
normal interior setpoint yet, and further investigation was clearly
warranted. The slab itself read about 48F at center and a bit less
near the edges,
which was cooler than the average listed earth temperatures for this
area, but I still had my theory about edge conduction and the external
wall surface being able to siphon more heat away from the general mass
of earth under the house.
Another interesting datum was watching it take about 7 kwh on pure resistance heat to bring the hot water tank from 50F back to 120F, from which I got a pretty close match for the specific heat of water. Variance from theoretical would come from the fact that water stratifies and the lowest layer doesn't get heated to the full temp of the rest. Thermodynamics! Physics! The formal definition of BTUs! It wasn't too long before I had to put things back into "standby" mode for another week while off working that year's Arisia, on return from which I found similarly cooled-down conditions but not quite as extreme. From that point on I would be able to go back to a normal heating and ventilation level and run the house in largely steady-state conditions for the rest of the winter. I dutifully logged my meter reads and heating degree-days every evening, using midnight as the sample point as it would better match how the degree-days were calculated up at Wunderground. And it got quite cold over that time, sometimes down to "design night" temperatures where it felt like the heat-pump was running almost 100% to compensate for the loss. That wasn't entirely from the gradient, though, as the afternoon shutdown over peak-metering time on weekdays got things a little behind the game and each evening had to add a recovery period. I think the deepest temp drop on any of those days was down to 59 or 60 degrees inside, from the nominal 68, and after massaging a few figures I made a rough guess that the aggregate specific heat of the house and contents was between 8000 and 10,000 BTU per degree F. So going into the coldest evenings it would take several hours to come fully back up to temp while fighting both thermal loss and mass at the same time. Containing the cold loop Within that stable framework I could try changing minor variables to see if it made any measurable short-term difference. One thing I wanted to experiment with was interrupting or containing the convective air loop around the window shades. Since these couldn't have zero clearance to the boxes there had to be an air gap at all four sides, letting the chilly windows "pump" air downward behind the shades. Numerous infrared shots couldn't really tell me how much of that cooled air might have been mixing with the rest of the interior air -- nothing ever showed it actually spilling down off the inner edge of the window ledges, but every time I put my hand on one of the sills I could feel the cold air flowing out the gap next to the shade almost like there was a draft. |

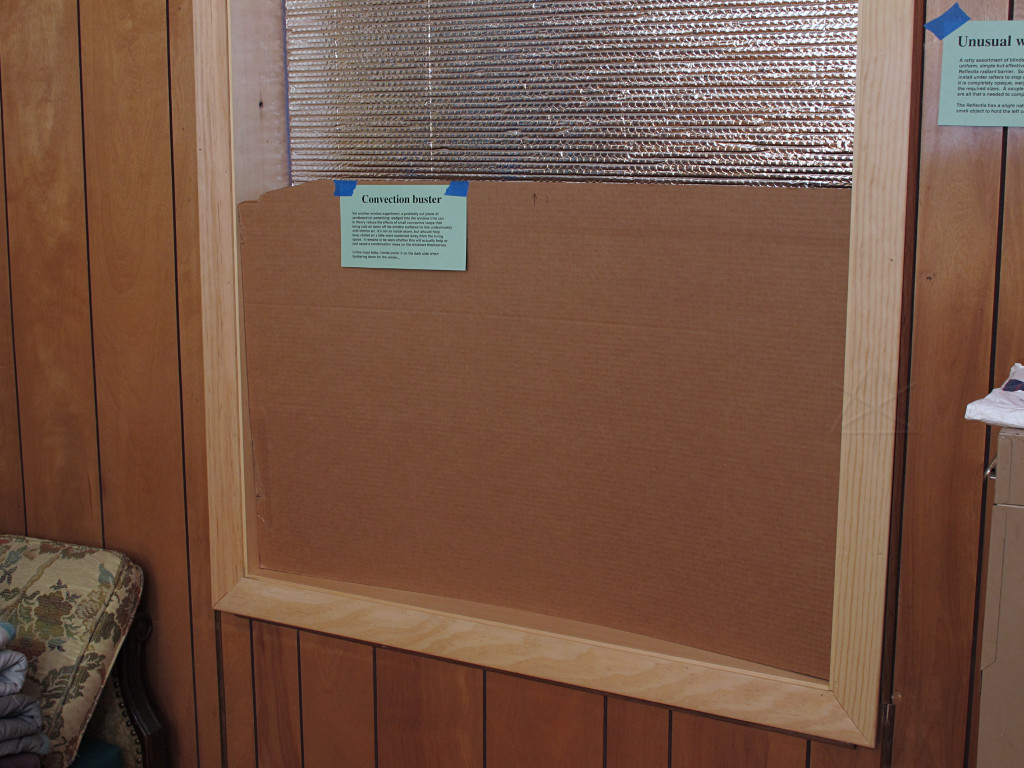

I made blockers of one sort or another for every window, and selectively
put them in over different periods and recorded surrounding conditions.
The results were sort of unclear in general. External IR shots
seemed to show an un-blocked frame (left) running just a little warmer,
but week-long comparison heat-loss tests back and forth with *all* the
blockers installed or taken out seemed to show no significant changes in
the overall btu/hr/F measurements one way or another. I just wound up
with more water accumulation on the frames and maybe it felt a little
less "drafty" if I was right next to a window box. As far as I could
tell none of this involved actual air leaks, after the meeting-rail
fixups and the fact that most of the windows are at elevations
nearer the neutral pressure plane anyway.
A number of effects probably canceled each other out. First, the shades are mounted fairly deep into the boxes which sort of keeps the whole convection game contained toward the exterior, possibly affecting the inside far less than I suspected. And with the blocker in, once the cardboard became cold around the bottom it might have been conducting *more* heat from the room right into the loop on the other side. A minor difference in indoor-to-outdoor temp over the area of the frames themselves probably wasn't enough delta change to be really significant. |

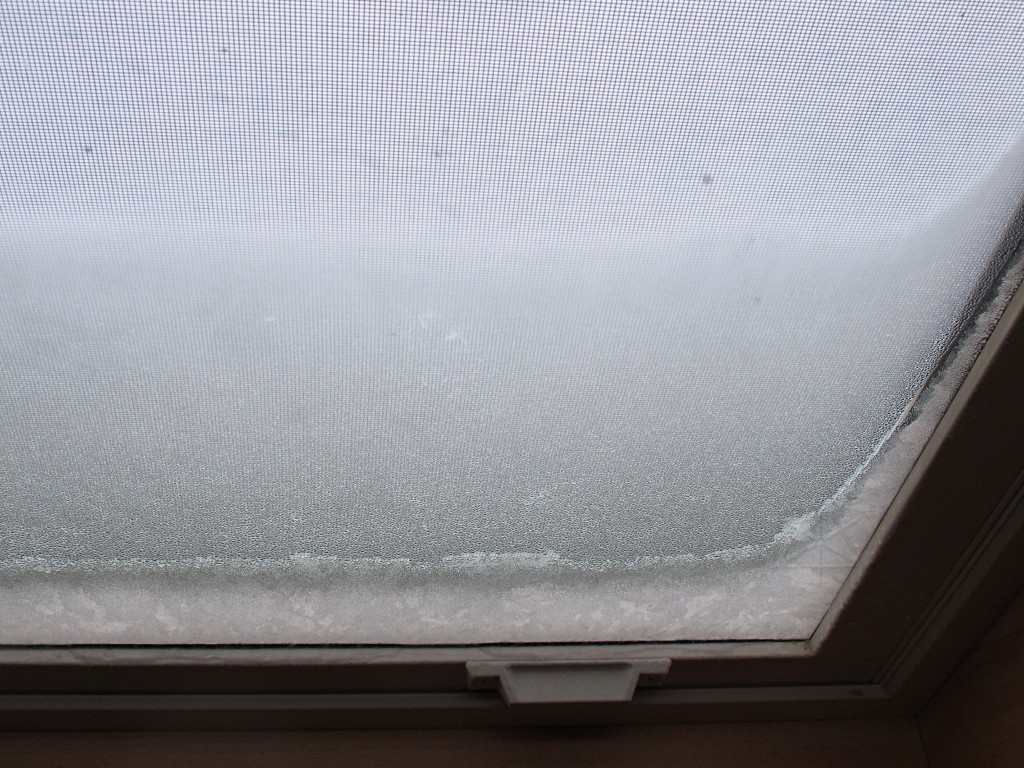

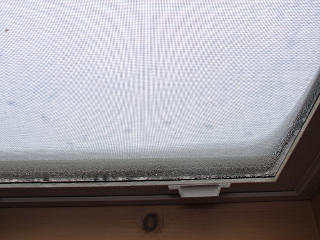

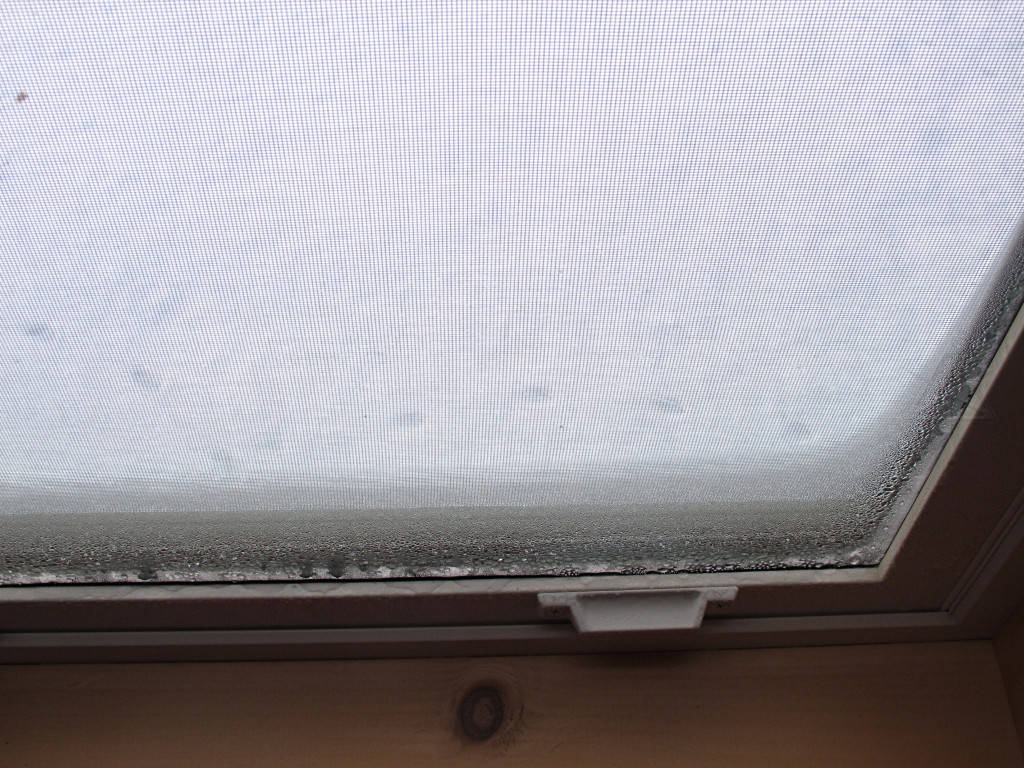

Some of the condensation issues got mitigated on the south-facing windows as I also played around with completely unshading them on sunny days to try and capture some free heat, at which point the condensation could evaporate away. Unfortunately these windows aren't really optimized for that with the low SHGC glass units, so that didn't seem to help a whole lot on the heat-loss side. I suppose a more idealized setup here would have been double-hungs with complete sets of seasonally changeable sashes, the winter pairs with a higher gain coefficient and still able to benefit from the radiant protection of my blinds once night fell. Or maybe that would all just be too much PITA factor and storage headache... |

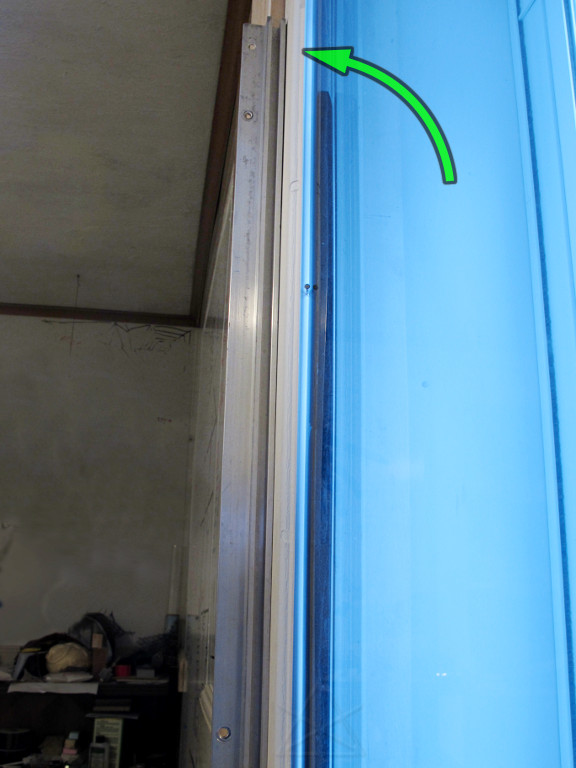

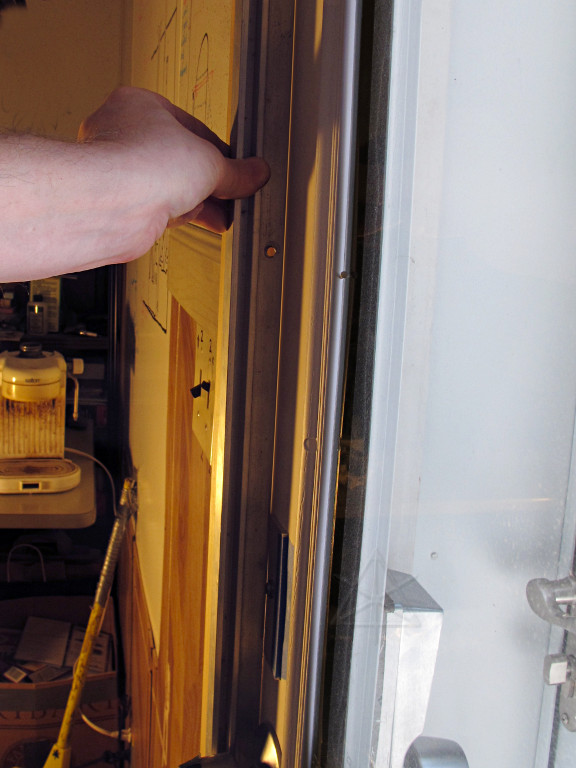

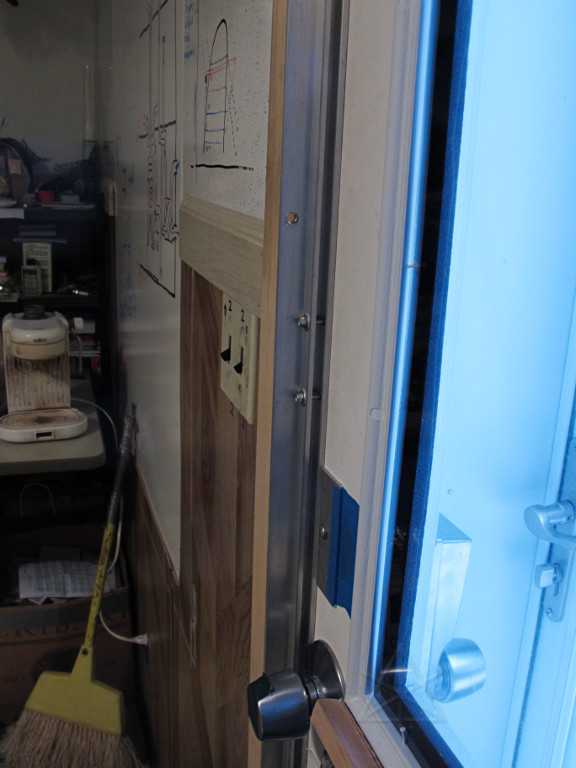

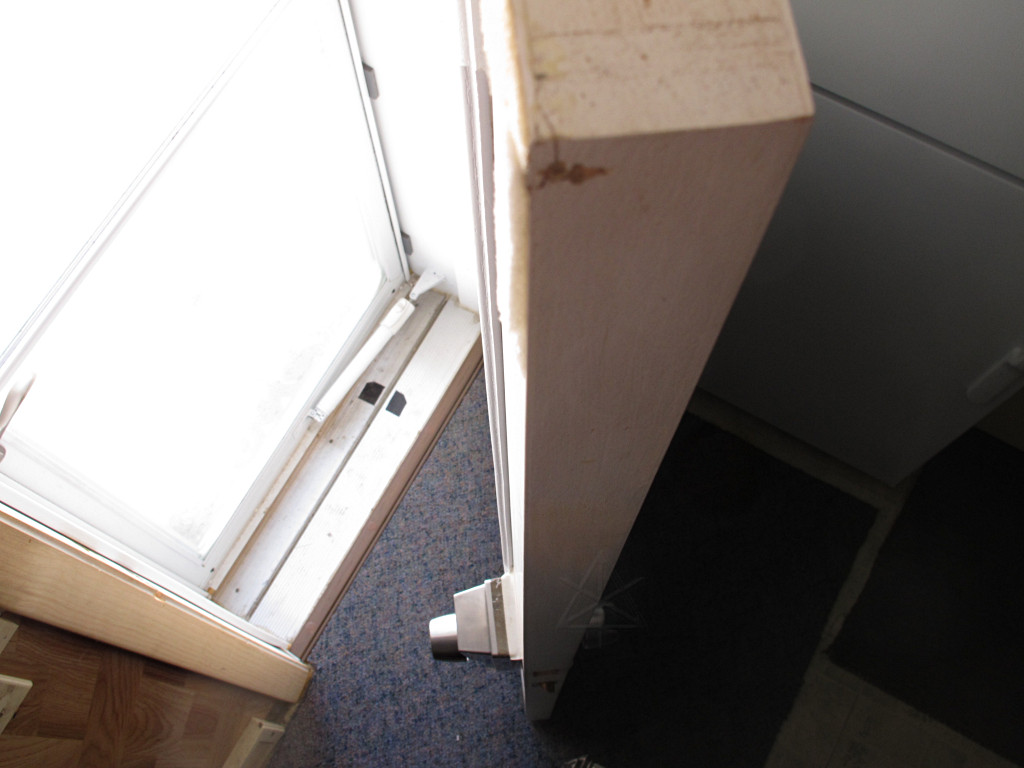

Enough with the windows, how about the door

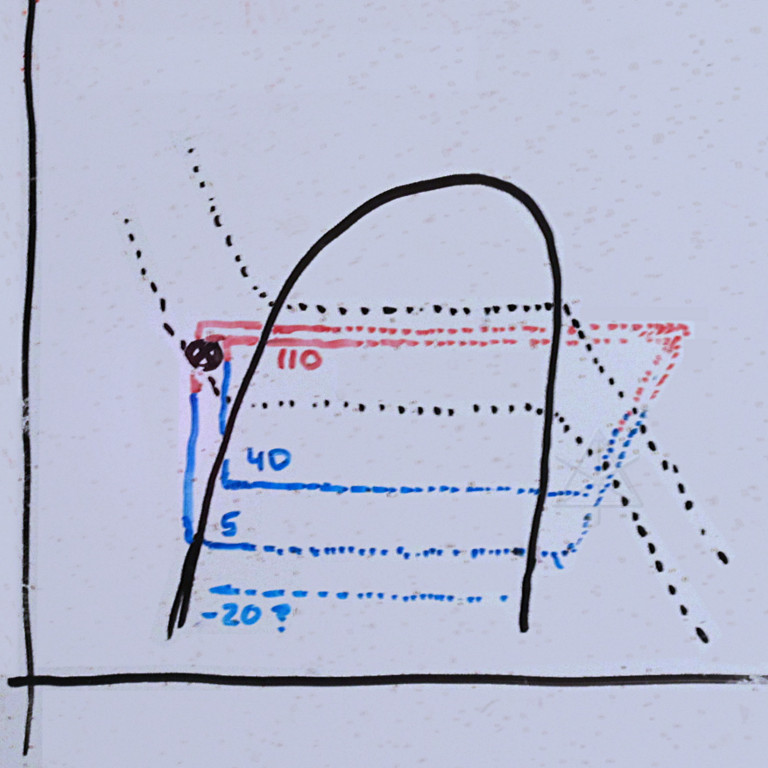

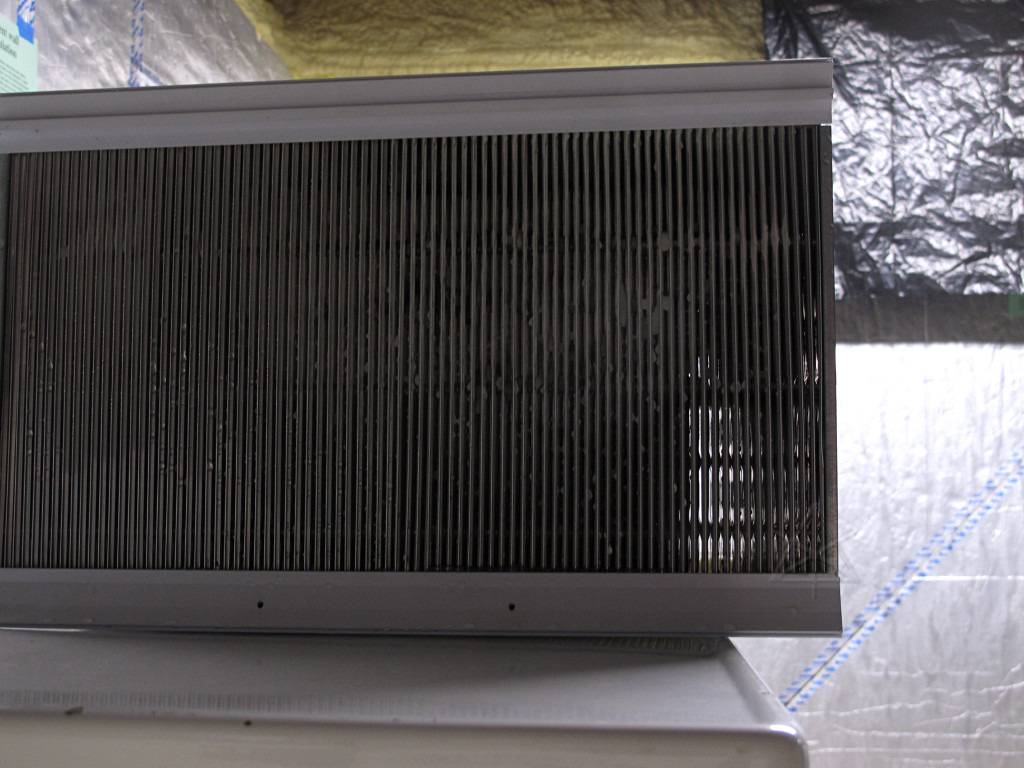

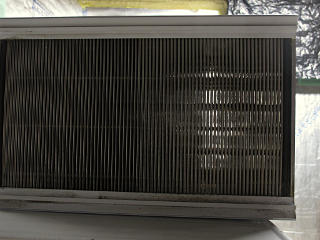

Caught in a pressure-enthalpy loop
Dollars and sense
HVAC costs aside, I had a couple of other strategies for reducing overall
energy costs -- for one, turning off the water heater over peak times.
A manual process at first, but I eventually wearied of going downstairs
to flip the breaker off

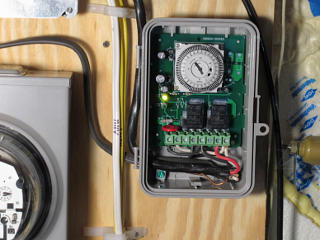

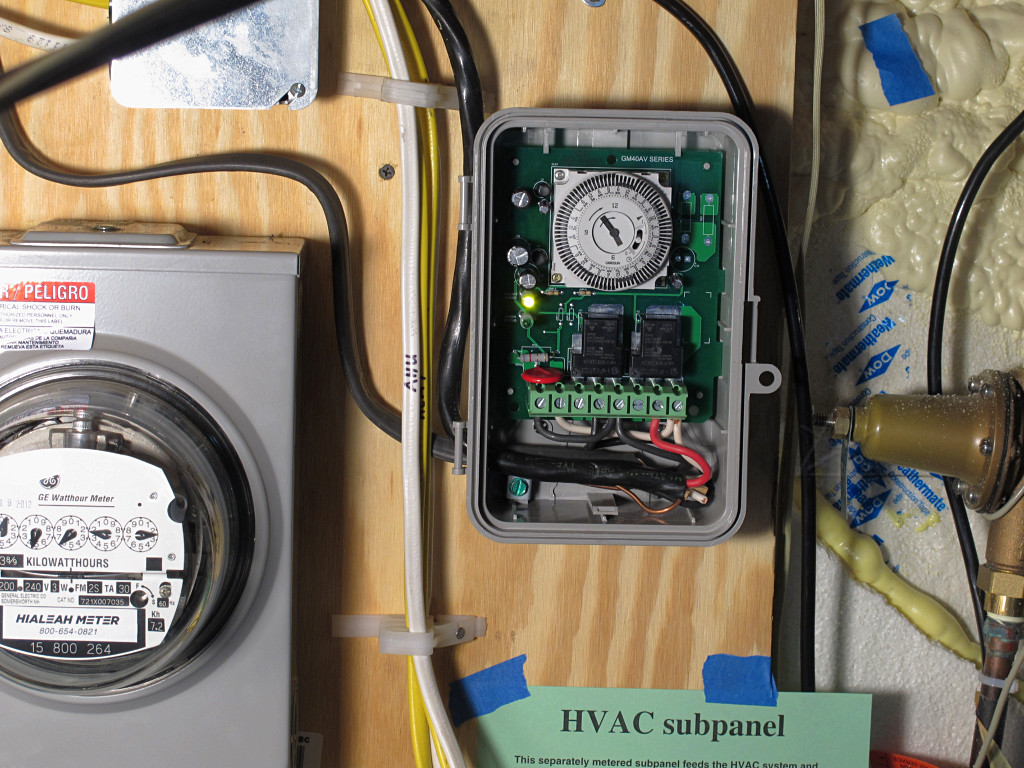

at noon and finally got and installed a water-heater timer. This is an
Intermatic WHQ7
or whatever its updated equivalent is, the seven-day
version of their electromechanical timers actually made by Grasslin in
Germany. Product reviews strongly indicated that this was a far better
choice than their more popular electronic EH40 which frequently suffers
from typical chinese quality[?] control and stops working.
Once around the dial is an entire week on this model, and each tripper represents a two-hour block. It's easy to see the programming to stay off over the weekday peak times, with generous margins on either side. I don't even come close to using all the stored water over those ten hours and what stays inside the Marathon tank cools down very little. | |
This unit was not entirely without its little problems, though. The clock
module wasn't mounted very well and presented a risk of being yanked right
out of the case if stressed wrong, requiring a couple more screws and
backing nuts to affix it firmly in place. And wrangling 10-gauge solid wire
through tight little areas wasn't exactly fun. Additional wiring complexity
comes from the fact that you have to supply jumpers between the line inputs
and clock power, it isn't already wired by default. This seems to be a
fairly common configuration for water-heater timers in general, which seems
odd given that the clock power supply auto-senses its input voltage anyway.
Per my norm of being the pain in the ass with the hard questions, I called Intermatic support on the clock problem. Once I got them past the denial stage, they had never realized that their measly two screws holding it in were merely threaded into holes through the fiberglass circuit board that barely gripped them. They do now. I thought German engineering would proactively catch something that structurally basic, before thousands of units went out the door. |

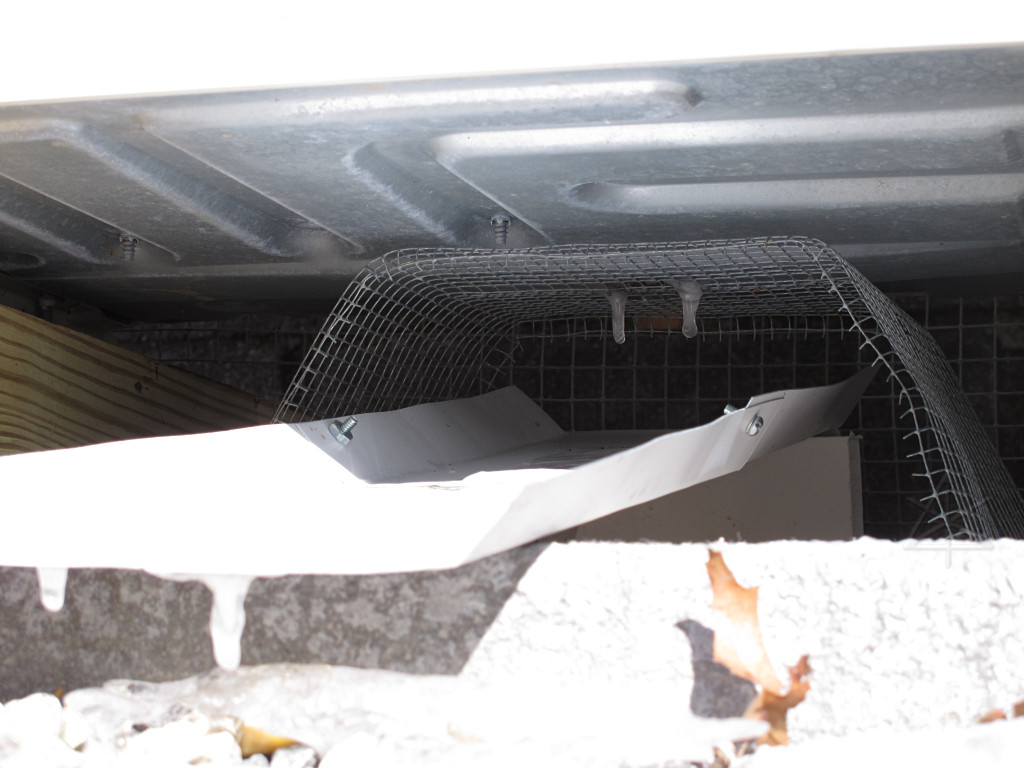

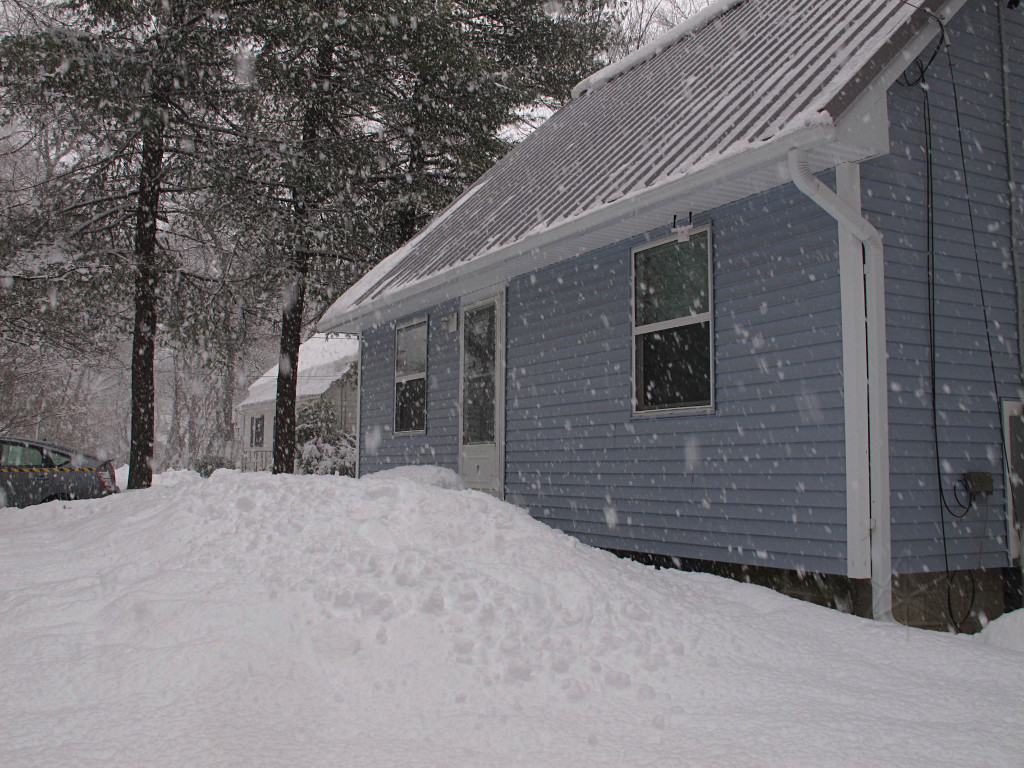

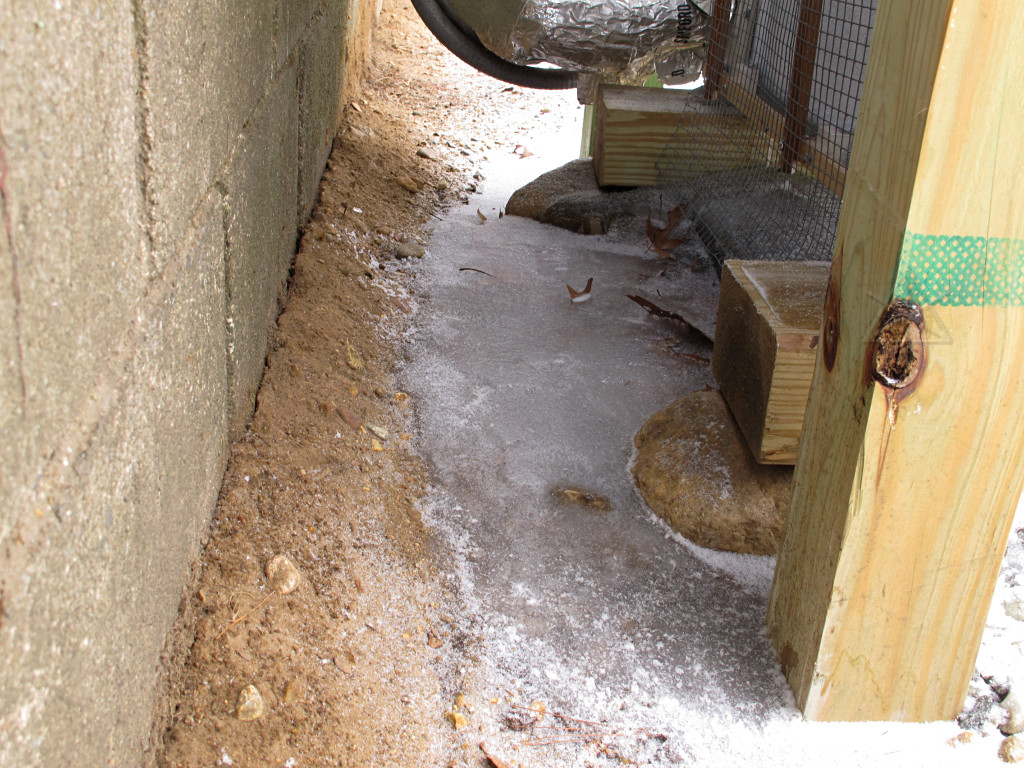

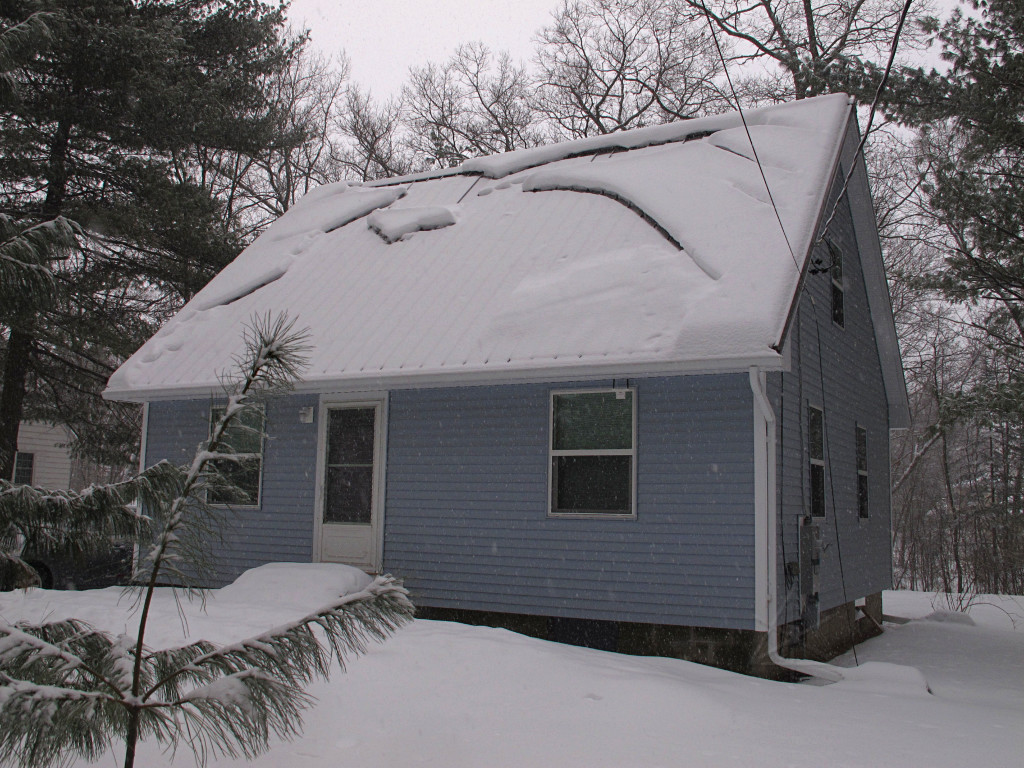

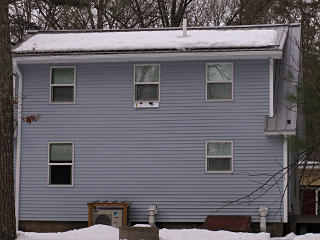

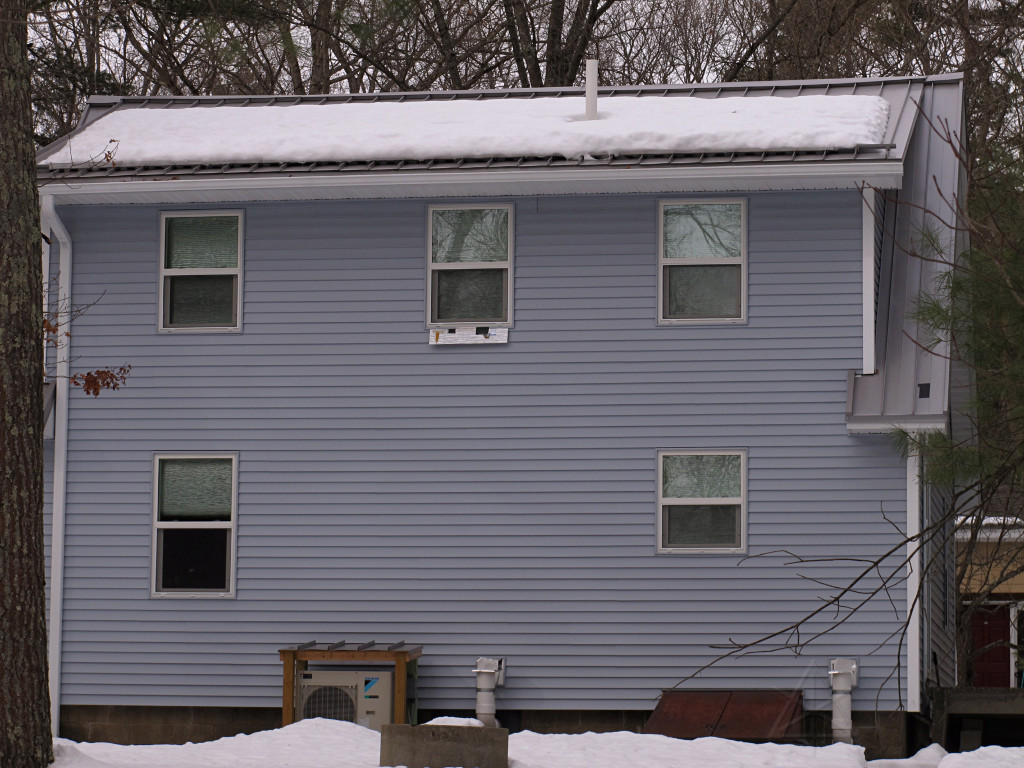

Ice is maybe not so nice

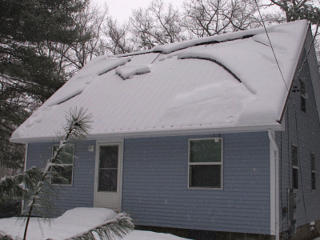

Roof rambling

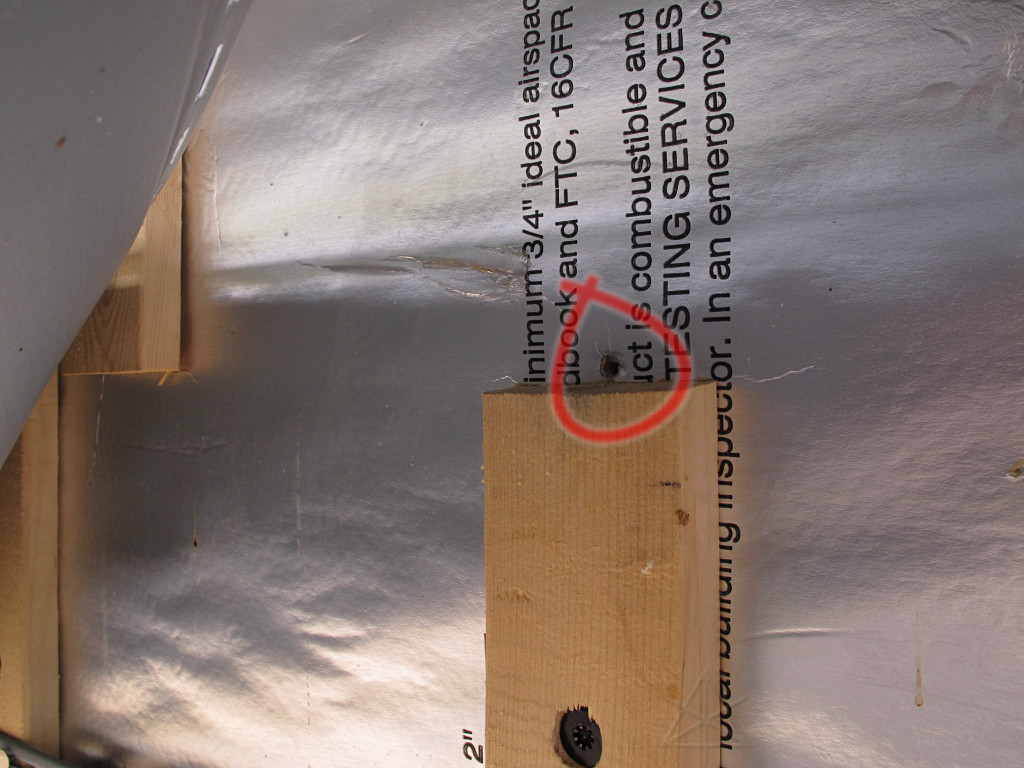

Seen in the crosshairs here, it's another intentional patch of gaff tape, which had to be on the large side so it would fill the sensing spot on the IR camera when shot from the ground. This was for evaluating night-sky radiation, as it was one of the factors I was starting to believe reduced the insulation effectiveness somewhat at cold temperatures. Note the IR scale carefully -- while the rest of the house is sizzling at 5F or so, my test patch is showing considerably cooler than that -- because it's facing the sky which is reading far lower than anything else in view. | |
Night-sky radiation is an interesting phenomenon that makes exposed objects
colder than one might expect. It's what forms ice on car roofs when
it's above freezing, causes damaging frosts on crops when it doesn't
seem that cold outside, and can either beneficially or detrimentally
cool a house. It's one of the several underlying reasons more insulation
is generally applied to roofs than to walls. The effective radiant
temperature of outer space is very low, presenting a huge thermal sink
overhead that incidentally also helps keep the earth from being
crispy-fried by
petawatt bombardment
of continuous broadband energy from the sun. On the dark side, any object
facing upward generally wants to release its heat toward the emptiness
of space, and succeeds in doing so under fairly common conditions.
There's an interesting
arm of research going on
about this for building cooling applications which is somewhat recent
but has its roots in knowledge thousands of years old. Even the DOE is
getting more interested in bringing this theory to modern practice.
What I don't quite understand when reading such studies is why metal roofing is usually the chosen upper surface, as its emissivity is often less than materials like wood or asphalt. I suppose metal will conduct that radiant "coolth" inward more readily, or something. It also usually isn't just bare metal, as typical roofing has some form of coating that changes the surface characteristics anyway but hardly makes it a blackbody. The finish on my standing-seam is fairly *reflective* in the infrared and various other bands that contribute to its favorable SRI rating, and any time it came into view in the IR camera at night it would basically show the temp of the sky above it -- in effect, really cold, so I assumed those were all false readings. That's different from the effect of the roof's native *emissivity*, so to try and get that baseline for how cold the metal itself had gotten it needed a slap of my standard "uniform measurement surface". Sure, thermal probes stuck in under the panels would have been better but it was a little late to conveniently do that. But now it was clear that the roof *does* run 10 or more degrees colder than ambient on clear and calm nights. Why the concern? Well, if the metal was getting much colder than the ambient temp then the effective thermal delta through the roof assembly would be *more* than the generic inside-to-outside. Which would also easily put its outer layers down around the temperature region where polyiso foam exhibits a weird *decrease* in R-value. Something about the blowing agent gas and how it's contained in the foam cells makes it exhibit a bit of a "hockey stick" decrease in insulation value below 10F or thereabouts, as discussed here. [Look at the graphs carefully.] If the upper inch or so of the polyiso stackup headed toward 0F or less, then it seemed likely that I'd take a hit in R-value over my head which is the traditional place where we want *more*. Oops. Maybe that's why the attic and kneewall spaces generally showed a bit colder than the rest of the place. So, artifically deep delta *and* the "polyiso penalty" giving less R-value up top at certain times! As I phrased it in a forum post, I seemed to be having issues with, uh, nocturnal emissions. Although I didn't track it minute to minute it felt like the heat pump was running an awful lot on those coldest nights, and these factors could have had something to do with it. Still, the house didn't actually lose warmth other than over the mid-day shutdowns which aren't *strictly* necessary if I really need to heat, so I guess I didn't have to go load up the roof with straw bales like the ancient Persians. There was also no visible spike in energy usage for clear nights, or if there was it got lost in the noise of day-to-day variance anyway. To mitigate the low-temp effect in a more practical fashion, possibly something to consider for colder climate construction, might have been using XPS foam for the outer layer instead. The Dow Weathermate tape probably wouldn't stick to it as well, but something like Wigluv 60 certainly would. I took similar house-to-roof delta readings in mid-spring on a much warmer clear night, and the difference was still on the order of 10F. It's not just a winter thing. |
Slummin'
I decided to pop into the
Building Energy
conference again in early March, but on the cheap after one of the
participating organizations offered a freebie trade-show pass. In the

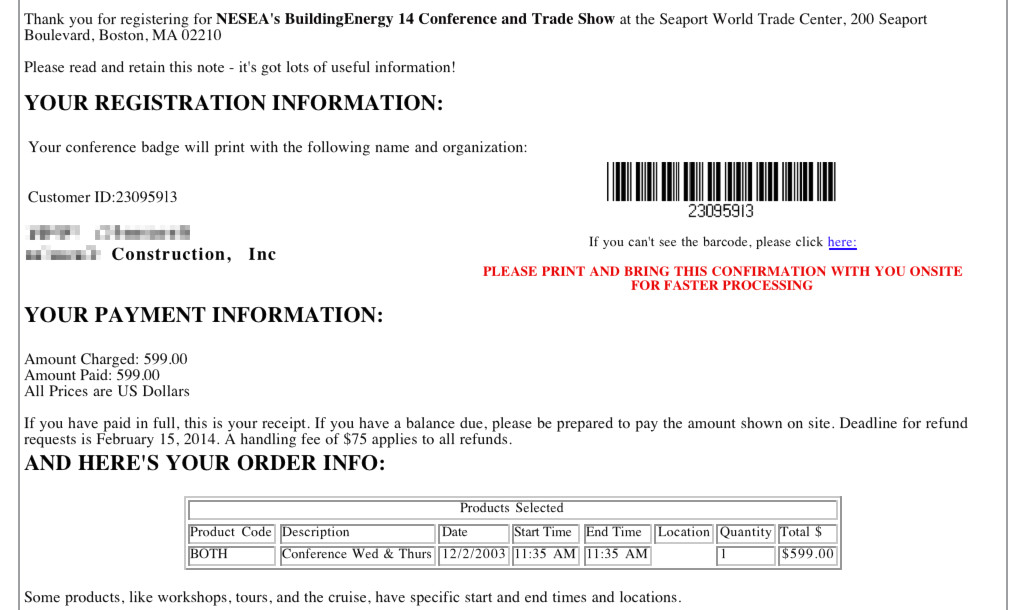

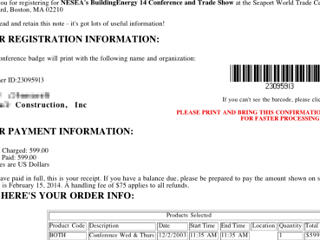

process of signing up [at yet another third-party registration-handling
site called PulseNetwork] I discovered that by just changing a digits or
two in the URL containing my obvious customer number I could not only
see any other attendees' registration details, I could *print out* their
barcoded confirmation sheets which was basically the credential everyone
was expected to bring to the conference to prove what they'd paid for.
ZOMFG, forehead-slap time. | |
I honestly thought that such astoundingly basic web-application coding
fuckups were a thing of the past after the field learned many hard lessons
over the years, but here it was staring me in the face. I could have just
as easily gone in under the name and $600 full conference registration of
some earnest hardworking local carpenter with an attendee number a couple
off from mine, which would have likely screwed the rightful owner at least
temporarily out of receiving his own ticket when he finally showed up as
well as causing all kinds of other mangement-level chaos. Rather than
exploit the issue for personal gain I immediately brought it to the
attention of PulseNetwork and the IT guy at NESEA. In the role of the
latter I would have been absolutely *ripshit* that a provider I was
paying good money to risked jeopardizing my event in such a stupid
and completely avoidable fashion.
I later talked to said IT fellow at the conference, and while he expressed far less desire to rake Pulse over the coals because he didn't want to "make waves" or "burn bridges", it was now at least on everyone's agenda to fix the problem before the next conference. To me that's just lame; there have to be a thousand other event-management providers out there with far better coding and security clue that I could choose from. One word, guys: HASHES. So I checked in as myself and just slummed around the tradeshow for a few hours, which was completely sufficient because frankly in the previous year I didn't learn all that much in the for-pay sessions. The conference has too many parallel tracks to begin with, making it hard to choose among multiple abstracts of potential interest. I figured I'd just wait for the slide decks to go up on the website and pull them down to read later, which I had already found to be among the better self-education methods available. I still ran into a few folks I knew by then including one of the principals of Synergy. I learned that they had severed their relationship with the subcontractor that had done my project, but that said sub was still out there getting plenty to work on. [I didn't encounter anyone from said sub at the show, however.] I chatted with some local Daikin reps and learned that their latest ENVi controller [an adaptation of the ecobee and tied to the same web portal] could independently run resistance strip heat in "emergency" mode, but on further investigation it turned out that this still doesn't work over the existing "P1/P2" data link and separate wiring and relays would still be needed, so it was basically no different from my existing auxiliary thermostat setup. I had a long and interesting chat with one of the founders of Air Pohoda about their new ERV design. I picked up a sample roll of Wigluv tape, which came in handy for a couple of small projects later on. I popped by Pinnacle's display and assured the fellow who had done the hardware fixes around my place that my windows were still performing admirably. The real surprise came from finding a booth with several people peddling a bizarre product called the Aquapol, which claims to utilize "free energy" from space to power a device that's supposed to force rising damp in masonry walls to recede just by its presence hung up somewhere overhead in the structure. [It looks like an oversize aluminum-clad hornet nest.] While there's all kinds of such woo-woo snakeoil out there I was mildly astounded that NESEA had let proponents for one of them into their show without vetting their claims first. I really thought they were more discerning than that. Well, one more nail in their coffin, I suppose. Many of the conference papers and slides did become available a couple of months later [hosted on Dropbox, not even NESEA's own website anymore], so I got a good look at what the choir was preaching to itself that year anyway. |
Where do we go from here
After various progress on finding remaining air leaks via the typical
blower "suck test" runs, I wanted to do the inverse to see if I could
spot any additional leaks from the exterior. This would need a calm
night, so any escaping warm air wouldn't get immediately swept away
on the breeze. I finally got one, and set up to run the fan the other
way around on a "blow test" and try to push my warm air *out* of the
house for a while.

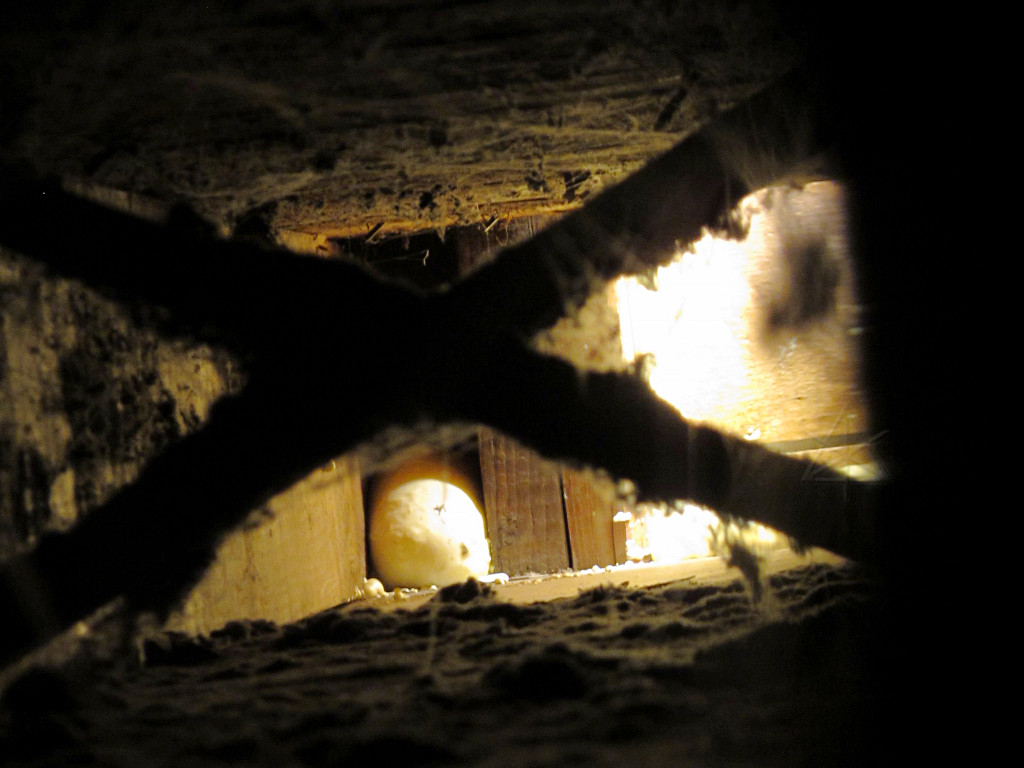

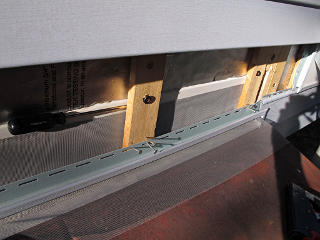

Nothing really egregious showed up, particularly anywhere behind the soffit strips where I would expect the highest probability of sealing issues -- I was grateful for that as getting access into there is doable but not easy. But there was this one tiny little hot spot in the midst of a wall, and I immediately knew that I was seeing the other end of what had one gable stud bay in the kneewall area looking somewhat mysteriously colder during the suck testing. And I already had a suspicion as to the exact cause. |
One thing to keep in mind about air-sealing in typical attics and basements
is that the more toward the top or bottom an improvement is done, the more
of a double benefit it has. Stop the infiltration in the basement and
you've already reduced a large part of the outgoing leakage in the attic
before even heading up there, and vice versa, because stack-effect pressure
deltas are strongest at the top and bottom. Overall my builders had done
a very tight job on the upper reaches of the house and I'd just taken care
of what on that scale might be considered the last major leak in the form

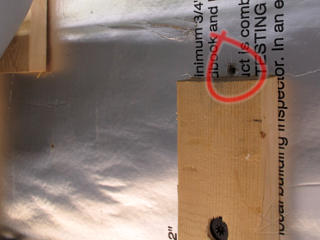

of the small screw hole, so with air basically trapped dead in the attic
and upper story there wasn't a lot trying to come in the basement anyway.
Easy proof of this could be had by cracking a basement window and feeling
how much cold air streamed in on my face -- with an upstairs window
either closed or open just a tiny slit, the difference was profound.
Suck/blow fan available or not, well-understood stack-effect can be used
to good effect for preliminary testing in any building.
Over the course of the winter I made a few informal evening "energy audit" visits to the homes of some of the folks on the owners' mailing list, which not only benefitted their understanding and prioritization of the issues in their own places, it gave me some different scenarios to look at on the IR and learn more about what to expect where. We didn't fan-test any of those houses, we just ran around the nether regions and living spaces spotting the most major "blue plumes" and doing a little hand-diagnosis. In some where they'd already done a bit of improvement it was sometimes reassuring for them to go into the street, shoot their own house with the imager and lock the range, then swing around to some neighbor's houses and see them glowing bright yellow by comparison. Like Dr. Joe keeps saying, there are still an awful lot of bad buildings out there. |
And speaking of wrapup ...
This seems like an appropriate place to declare an endpoint to the
sequential renovation/retrofit writeup itself, as it is largely complete
at this juncture. It was quite the
journey, and anyone who's actually wandered through all 150,000+ words
of it has covered more than two typical novels' worth of territory and
has my unwavering gratitude for hanging in with it that long. Still a
little shy of "Moby Dick" scale, but whether that qualifies it as an
epic whale of a tale or not I can only hope it's been informative
and/or entertaining.
It remains here for all as a reference work, collection of rants, celebration
of geekdom, historical curiosity, or whatever anyone wants it to be.
Subsequent fixups and other home projects that happen to get documented get their own independent description pages now. The first of such to go up, for example, details a roofing fix to improve water-resistance of some poorly constructed joints. Some amount of plumbing work seems quite likely not too far down the road, and an improved driveway may come under consideration soon. Energy tracking in some form will doubtless continue indefinitely, especially if more major changes that affect it get made. But sometimes it's just a nice place to quietly cozy up inside on a cold winter night and try to get some more writing done. For the rest of the independent pages, consult the Index near the bottom. |
